1.5kw Sunkko 709a 220/110v Battery Spot Welder With 70b Welder Pen Spot Welding Machine For 18650 21

Price:$139.16/Piece
Min quantity:200Piece
Quantity:5000Piece

Buy

Overview

Essential details

• Applicable Industries:

• Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use

• Showroom Location:

• None

• Video outgoing-inspection:

• Not Available

• Machinery Test Report:

• Not Available

• Marketing Type:

• New Product

• Warranty of core components:

• 1 Year

• Core Components:

• Engine

• Condition:

• New, 100% Brand

• Place of Origin:

• Guangdong, China

• Brand Name:

• robotlinking

• Rated Capacity:

• n/m

• Rated Duty Cycle:

• n/m

• Max. Welding Thickness:

• n/m

• Dimensions:

• 140*245*200mm, 140*245*200mm

• Usage:

• battery connection

• Voltage:

• 220v, 220v

• Warranty:

• 1 Year

• Key Selling Points:

• Easy to Operate

• Power (kW):

• n/m

• Weight (KG):

• 0.8 KG

• Product Name:

• SUNKKO 709A Battery Spot Welder

• Welding current::

• 50A~800A

• Color:

• Picture

• Power::

• 1900W

• Application:

• li-ion battery pack welding machine

• Package:

• Standard Package

• plug:

• EU

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Original paper box,An-ti Plastic bag

• Port

ShenZhen Hongkong

• Lead time:

• Quantity(pieces)	1 - 10	11 - 500	501 - 3000	>3000
  Est. time (days)	5	7	10	To be negotiated

Contact Us for Cheaper Shipping

Product Description

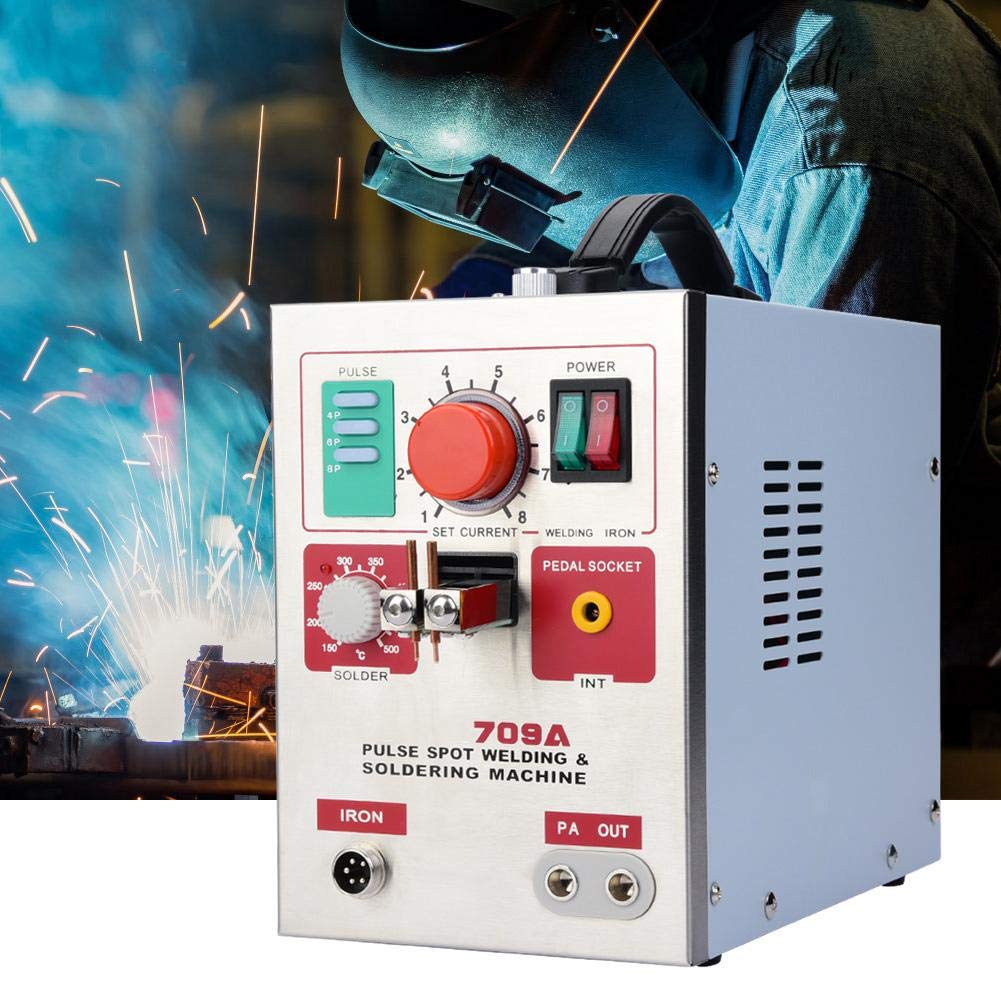

1.5kw Sunkko 709a 220/110v Battery Spot Welder With 70b Welder Pen Spot Welding Machine For 18650 21700 Battery Pack

1.The machine is a combination of battery spot welding and Circuit board solder, that make your work more convenient.
2.fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become
flexible.
3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator,selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately,it is suited for welding any intergrated circuit or
wiring.
6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.

Scope of application

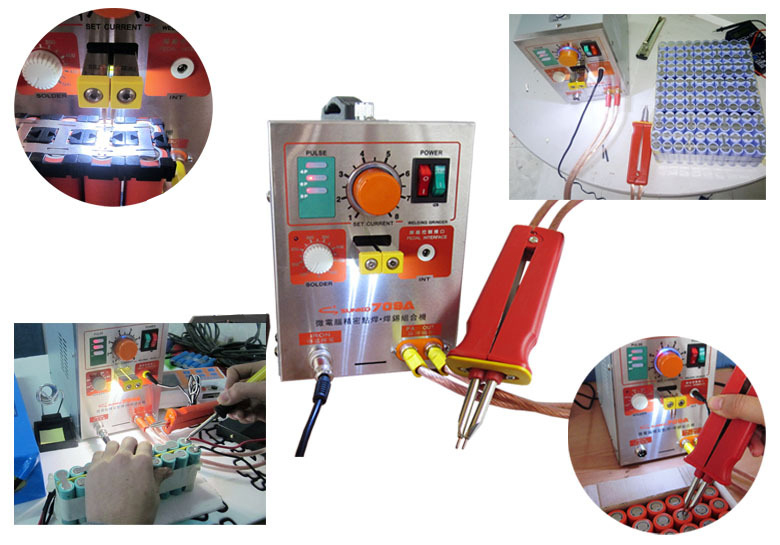

Lead sheets of rechargeable battery can be welding rapidly.
The production,installation,welding of lithium battery or mobile power.
The welding of lead sheets and wires from metal parts.

Attention:
1. This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't
be used to weld metal including copper and aluminum.
2.The welding thickness 0.03 - 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated
steel, the range is 0.08 - 0.3 mm.
