Overview
Essential details
Place of Origin:
Jiangsu, China
Condition:
New
Repeatability (X/Y/Z) (mm):
±0.001
Table Travel (X) (mm):
1500
Table Travel (Y) (mm):
3000
Table Travel (Z) (mm):
180
Number of Axes:
5
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2021
Warranty of core components:
2 years
Cutting Accuracy(mm):
0.01
Core Components:
PLC, Engine, Bearing, Gearbox, Motor
Brand Name:
ACCURL
Voltage:
380V 220V Optional
Rated Power:
7.5 KW
Dimension(L*W*H):
3880*2150*2000mm
Year:
2021
Warranty:
3 years
Weight (KG):
6500 KG
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points:
High-accuracy
Showroom Location:
Morocco, Argentina, South Korea, Chile, Colombia, Romania, South Africa, Japan, Malaysia, Australia, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia
Type:
Water Jet Cutters
After-sales Service Provided:
Engineers available to service machinery overseas, online support, Video technical support
Model Number:
ACWJ-1530
Effective Cutting area(Length):
1500mm
Effective Cutting area(width):
3000mm
run soeed:
20m/min
Cutting positioning accuracy:
±5mm/m
Surface roughness:
Ra≤25μm
Weight:
6500Kgs
Application:
Industrial metal Cutting
After Warranty Service:
Video technical support, online support
Local Service Location:
Japan, Malaysia, Australia, Morocco, Argentina, South Korea, Chile, Colombia, Romania, South Africa, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia
Certification:
CE ISO
Supply Ability
Supply Ability
10 Set/Sets per Day
Packaging & delivery
Packaging Details
Steel Pallet for Water jet Cutting Machine
Port
ShangHai Port
Picture Example:
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 45 To be negotiated
Products Description

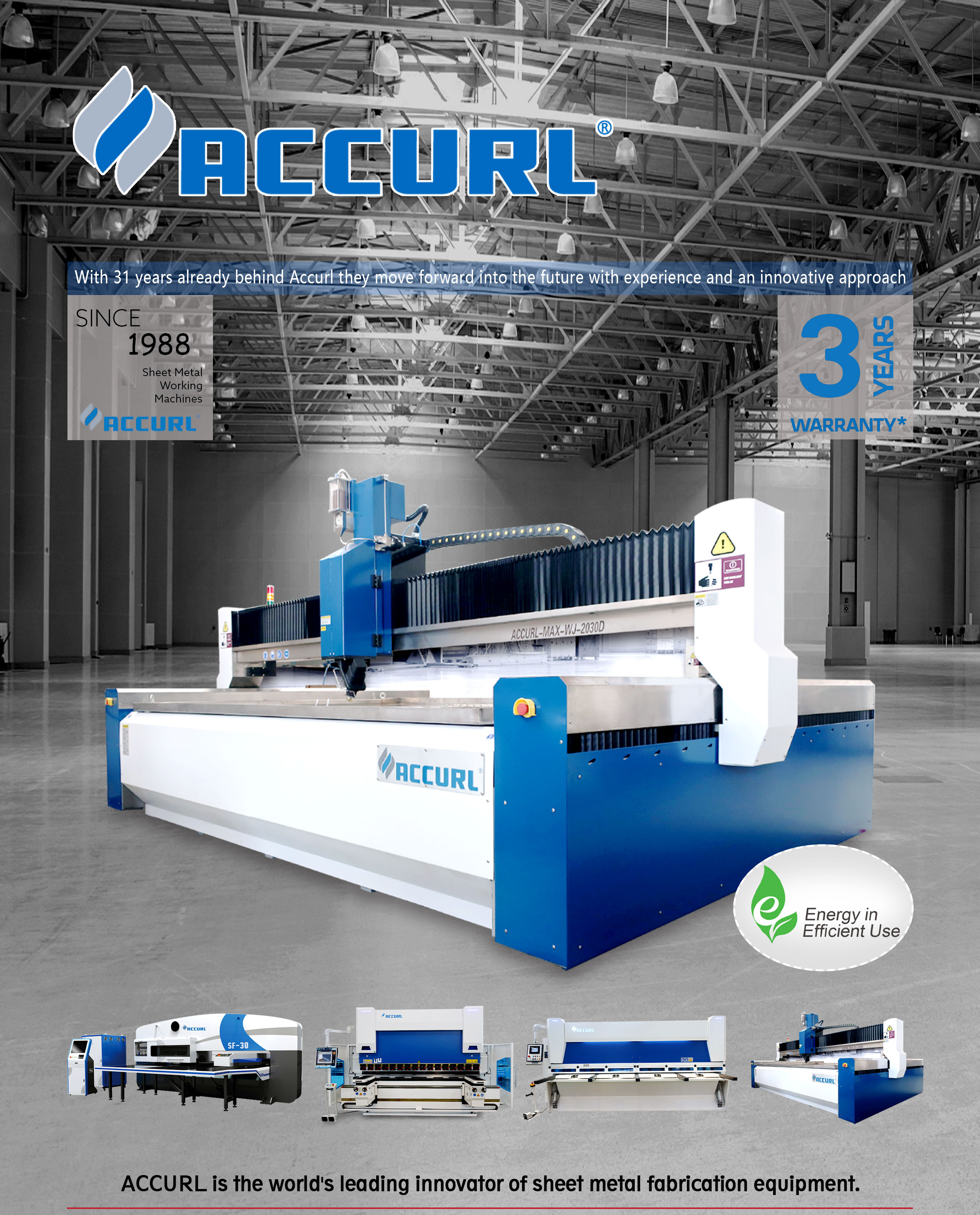

3015 SERIES WATERJET CUTTING MACHINE 50HP
The ACCURL MAX-WJ CNC waterjet cutting series is an addition to Accurl MAX-WJ CNC waterjet cutting machine line. It provides a vigorous industrial design and rigid construction that combines precision and simplicity. The
MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ waterjet cutting series provides a vigorous industrial design and rigid construction that combines precision and simplicity. The MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ models come in two distinct sizes for the most common applications.
TECHNOLOGICAL ADVANTAGES
* The most versatile cutting systems on the market today, covering the full range of materials and thicknesses, even painted surfaces.
* Low cutting temperatures to prevent thermal alteration and residual tension.
* Clean cut without harmful atmospheres
* The cut surface neither cracks nor bends.
* Optimal utilization of raw material with negligible material loss
* Eliminates subsequent finishing processes.
* Ability to perform different types of cutting simultaneously
* Very strict tolerances..
FULLY ANNEALED frame
* ACCURL®steel frames undergo annealingat over 600⁰ to relieve stress.they are built to last years of heavy use withoutdistortion.
* Very stiff and stable base frame
* Dual synchronized twin servo motor drive system.
* Stress points analysis
* Usage of high-tech boring machines for extreme precision parts.
CAST ALUMINIUM GANTRY
ACCURL®s high tech Mn-steel crossbeam allows better rigidity at 50% of the weight of traditional iron gantries, allowing higher acceleration with reduced inertia.this creates less wear and tear on the machine.
YASKAWA SERVO MOTORS & DRIVES
* The Smartline is equipped with cutting edge Germany designed
* YASKAWA servo motors and drives from Japan.
* High-speed EtherCAT communication
* Highly dynamic behaviour
* Brushless three-phase motors
* Flexible motor type selection
TRANSMISSION SYSTEM
* ACCURL® Waterjet are provided are equipped with constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
* X ,Y-Axis with HIWIN linear guide and Ball Screw.
* Less noise, greater durability and greater precision.
* Unprecedented positioning repeatability of ±0.05 (optional ±0.01).
HIGH PRESSURE PUMP
The high pressure is generated in the intensifier of the pump, actuated by an oil pump inside, and also the low water supply system. The latest generation of pumps offers the most advanced water jet technology with working pressures Up to 4200 bar. The design with a single intensifier, which generates up to 4200 bar, reduces maintenance costs and offers a quieter operation and fewer spare parts.
