Overview
Essential details
Place of Origin:
China
Brand Name:
YOMIN
Model Number:
YEM015SJ
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
10(100)A
Accuracy Class:
Class 1
Output Voltage:
127,230
Operating Temperature:
-20℃~ 70℃
Dimensions:
140x35x68mm
installation:
35mm standard DIN rail
standard:
DIN EN50022
Supply Ability
Supply Ability
10000 Piece/Pieces per Month for Electric Energy Meter
Packaging & delivery
Packaging Details
Standard Export Carton Box or Pallet
Port
SHANGHAI/NINGBO
Lead time:
Shipped in 2-5 days after payment

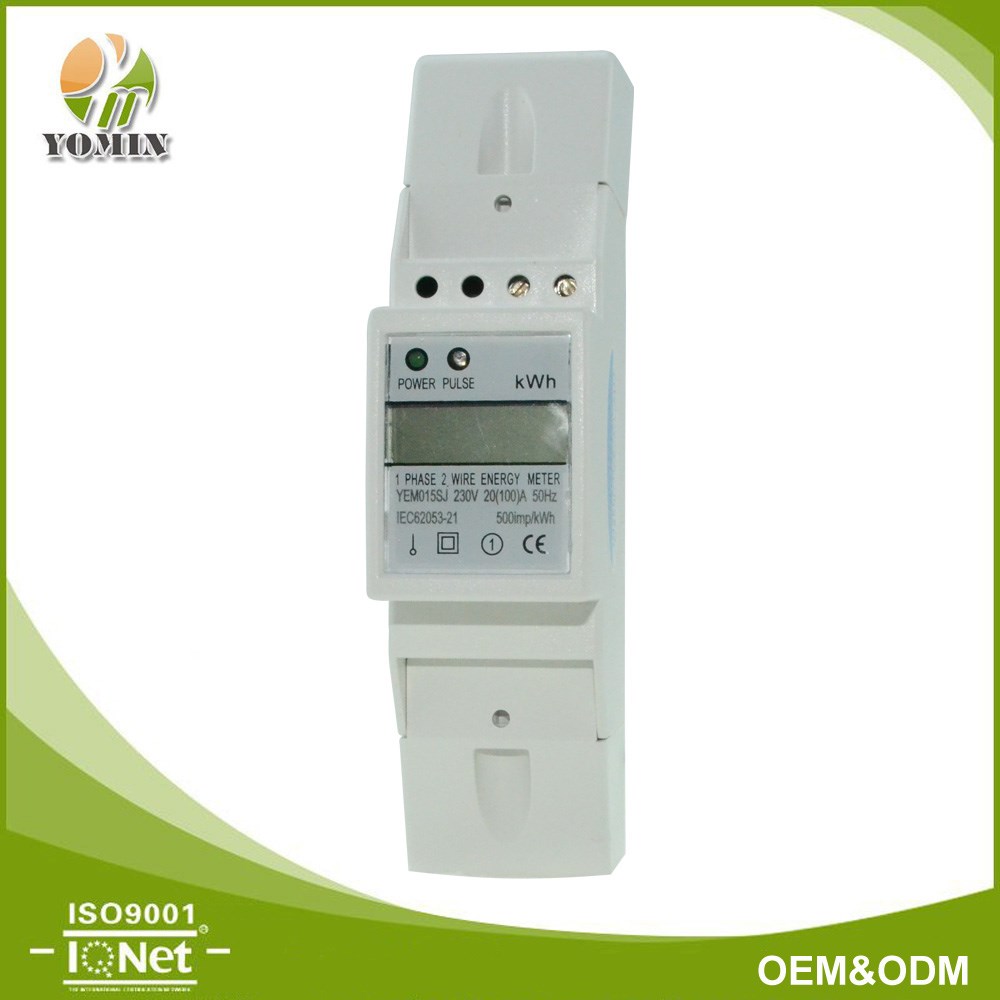

NEW TYPE single phase two wire din rail active electric energy meter with LCD display and pulse output

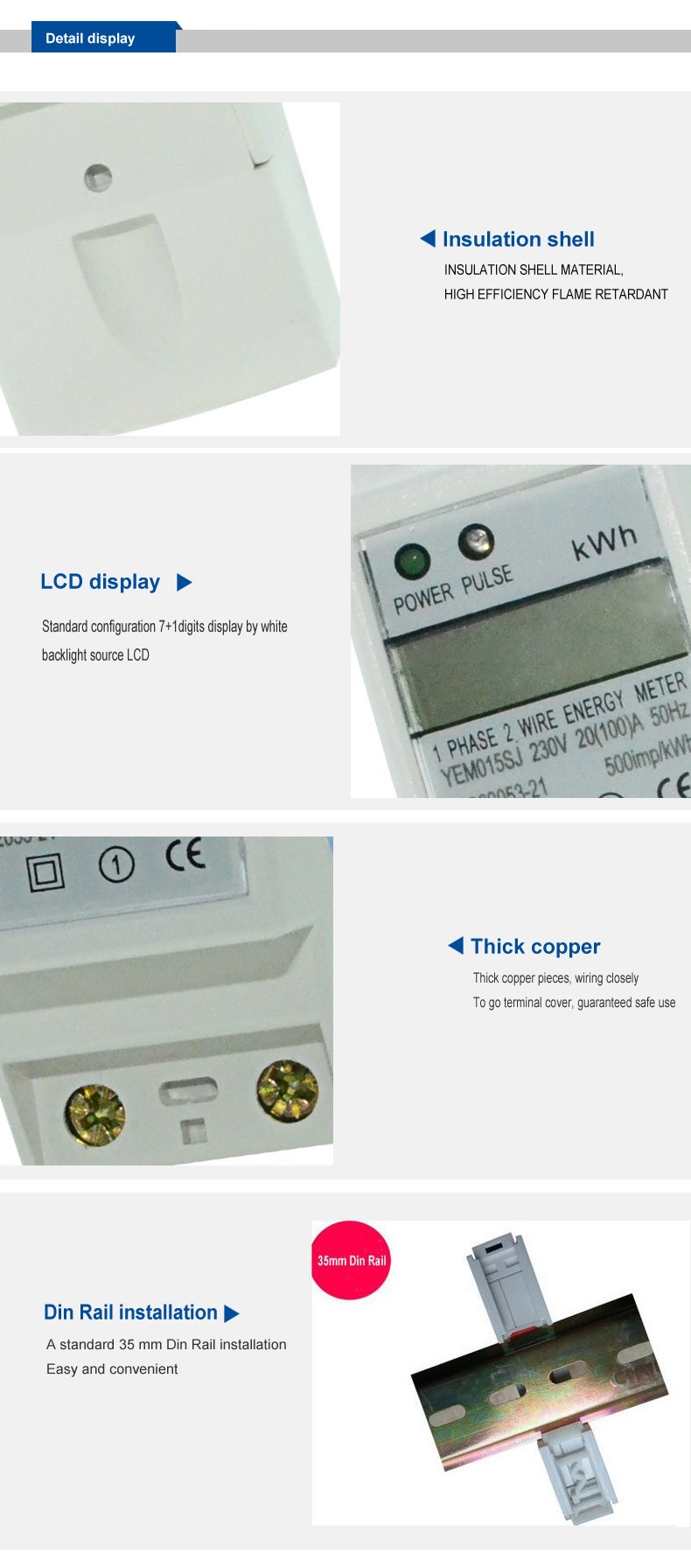

Details

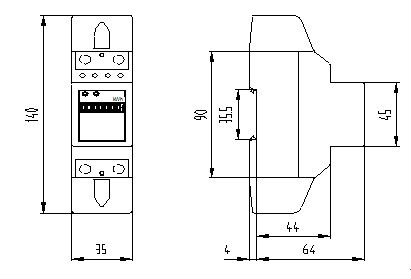

Dimension
Wiring diagram
| Terminal | Note | |||
1 | Inlet phase line | ||||
4 | Inlet neutral line | ||||
3 | Outgoing phase line | ||||
6 | Outgoing neutral line(Inlet from top, outlet from bottom) | ||||
20 and21 | Port of pulse output passive | ||||

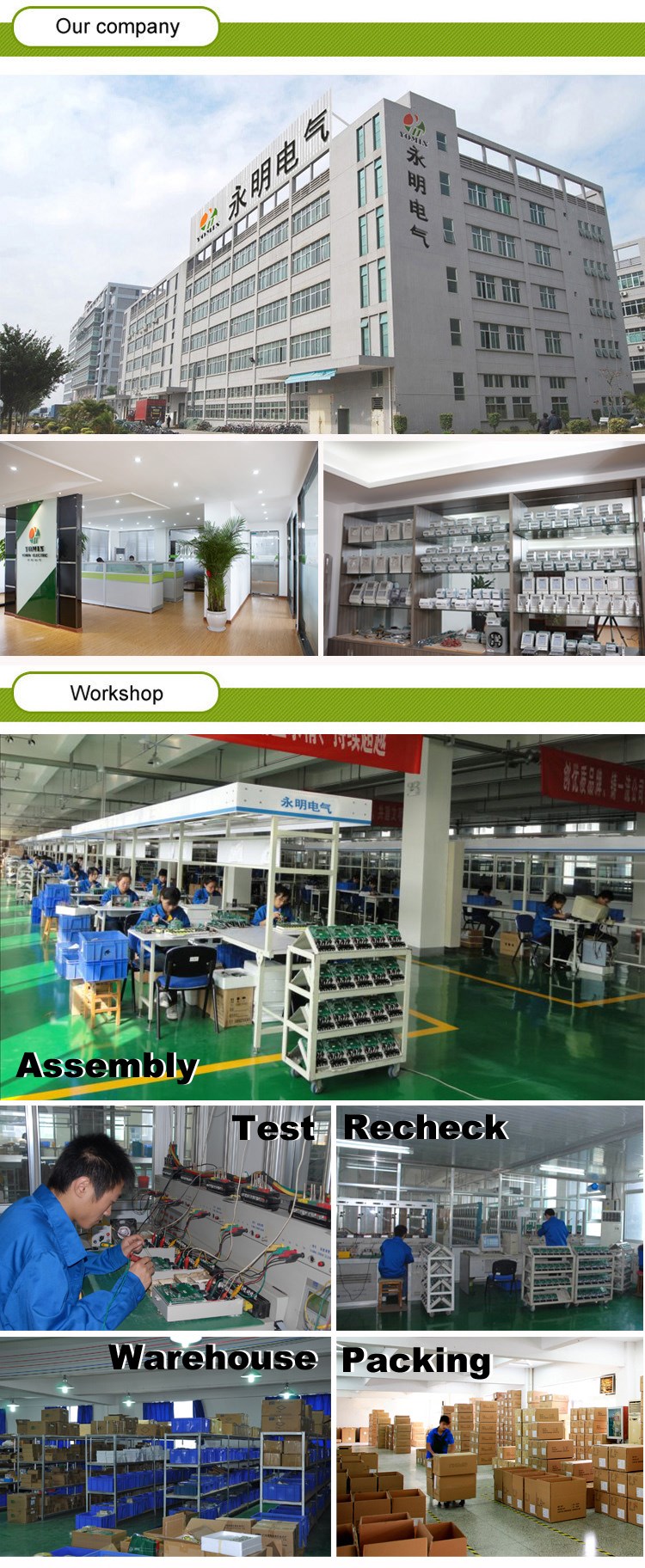

Company Information
