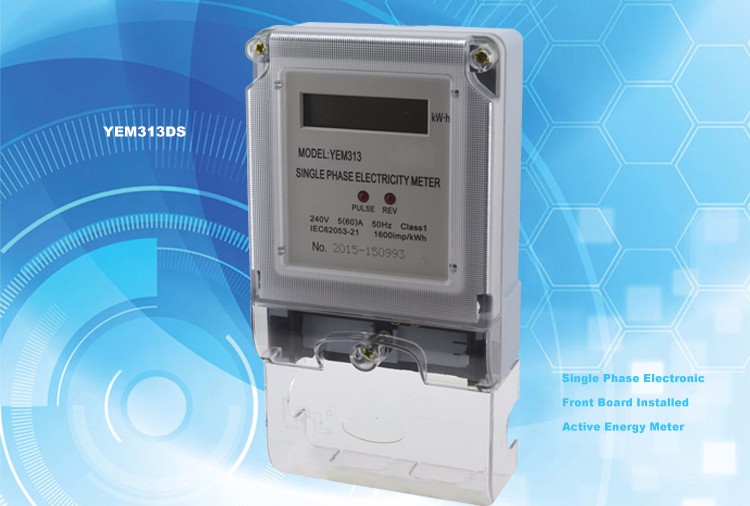

Wholesale Electricity Meter Tampering Meter Reading/ Electric Meter

Price:$8.60/Piece
Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days

Buy

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM313DS

• Display Type:

• Digital Only

• Phase:

• Single Phase

• Measuring Energy Range:

• 0-999999.9kWh

• Accuracy Class:

• 1.0

• Output Voltage:

• 127 V, 230 V

• Operating Temperature:

• -20℃~+70℃

• Dimensions:

• 200x109x59mm, Custom size acceptable

• Frequency:

• 50-60HZ

• Material:

• PC (Poly Carbonate)

• Display Mode:

• LCD6+1/5+2

• Connection Mode:

• Direct Mode

• Color:

• White

• Certificate:

• ISO9001, CE, RoHS

• Style:

• Customized Design

• Logo:

• Laser Engrave or Print

• Standard:

• IEC62053-21

• Advantage:

• Good Reliability and Accurate Measurement

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

PE bag+White box+Master Carton

• Port

Ningbo or Shanghai

• Lead time:

• 5 Days after payment

Wholesale Electricity Meter Tampering Meter Reading/ Electric Meter

Technical Parameters



Model	Accuracy	Frequency	Size	Material
YEM313DS	1.0	50-60HZ	200x109x59mm	PC
Reference  Voltage(V)	Current  Specification(A)	Staring  Current(A)	Display  Mode	Insulation  Performance
127 V ,230 V	5(30)A ,10(50)A, 20(100)A	0.02A,0.04A,0.08A	LCD 6+1/5+2	AC voltage 4kv for 1 minute, 1.2/50us waveform  impulse voltage 6kv

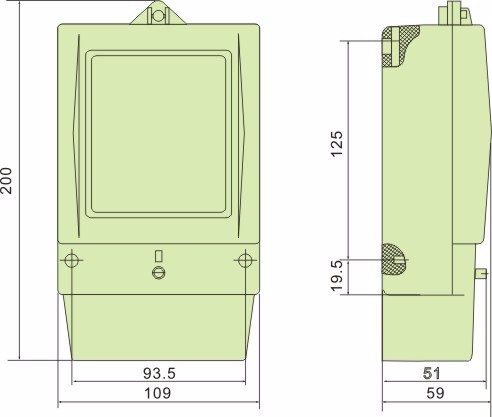

Dimension and Wiring
