Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
DTSY666
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
10(80A)
Accuracy Class:
1
Output Voltage:
220v/230v/240v, 220v/230v/240v
Operating Temperature:
-20℃~+70℃
Dimensions:
Standard Size
Material:
PC (Poly Carbonate)
Usage:
Active and Reactive Electric Energy Measurement
Connection Mode:
Directly Connection
Color:
White
Frequency:
50Hz
Feature:
Good Reliability, Small Volume, Ligth Weight, Specious Appearance
Certificate:
ISO9001, CE, RoHs
Advantage:
Customized size; Convenient Installation
Pulse constant::
400imp/kWh
Supply Ability
Supply Ability
100000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
PE bag+White box+Carton

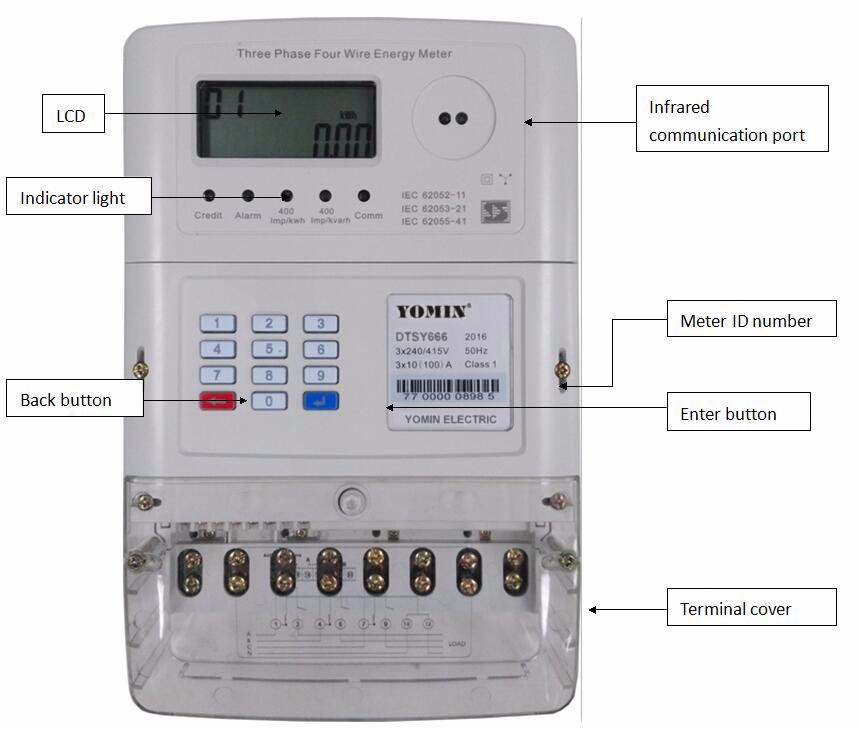

High Quality Keypad Smart Prepaid Three Phase Four Wire Energy Meter
Port
Ningbo or Shanghai
Lead time:
Quantity(pieces) 1 - 100 101 - 1000 >1000 Lead time (days) 7 70 To be negotiated
High Quality Keypad Smart Prepaid Three Phase Four Wire Energy Meter
Product Description
Features
The meter can measure forward active energy consumption, backward active energy consumption, voltage, current, instantaneous power and etc;.
The meter can record total energy consumption, remaining electricity quantity, events and recharge;
The LCD screen can show remaining electricity quantity, to remind user to purchase electricity;
Balance alarm can be set by user according to his own need;
With photoelectric communication port, user can read and set parameters of the meter through the PC software;
The meter can detect reverse connection of zero line and live line, take the absolute value and calculate the power consumption;
The meter can detect more than 400mT magnetic field, LCD shows status of electricity theft and record;
User can recharge successfully just by correctly input 20-digit TOEKN code with the buttons on the meter, not need any card.
Technical Parameters
| Model | Accuracy | Reference Voltage (V) | Current Specifications (A) | Starting Current | Pulse Constant (C) |
| DTSY666 | Class 1 | 230 | 10(80) | 0.02 | 400imp/kWh,400imp/kvarh |
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
