Min quantity:1Piece
Quantity:999Piece
Deliver:In 7 days
Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM021GC
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
0-999999.9kWh
Accuracy Class:
Class1.0
Output Voltage:
3x127V/220V, 3x230V/400V
Operating Temperature:
-20℃~ 70℃
Dimensions:
88x125x73 mm
Rated Current:
5(30)A 10(60)A 20(100)A
Starting Current:
0.02A 0.04A 0.08A
Material of case:
PC (Poly Carbonate)
Installation:
35mm Standard DIN Rail
Connection Mode:
Directly/ CT/ CT & PT
Frequency:
50HZ/60HZ
Color:
White
Standard:
IEC62053-21
Certificates:
CE, RoHS, ISO9001
OEM:
Avaliable
Supply Ability
Supply Ability
20000 Piece/Pieces per Month din rail with YEM021GC
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.06 KGS.
4. Packing Number for One Carton: 24 PCS/CTN
Port
Ningbo/ Shanghai
Lead time:
shipped in 2-5 days after payment

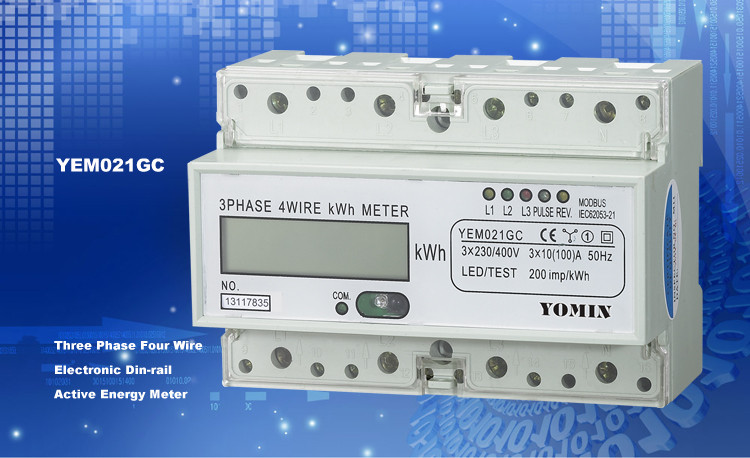

YEM021GC RS485 and infrared 3 Phase 4 Wire Din Rail Energy Meter/AMR Electric Digital Power Meter
Product Description
Technical Parameters
| Model | Accuracy | Communicatin | Dimension | Connection Mode |
| YEM021GC | 1.0 | RS485, infrared | 88x125x73mm | Directly/ CT/ CT&PT |
| Rated Voltage | Rated Current | Starting Current | Display Mode | Insulation Performance |
| 3x127V/220V, 3x230V/400V | 5(30)A ,10(60)A, 20(100)A | 0.02A, 0.04A, 0.08A | LCD 6+1 | AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv |

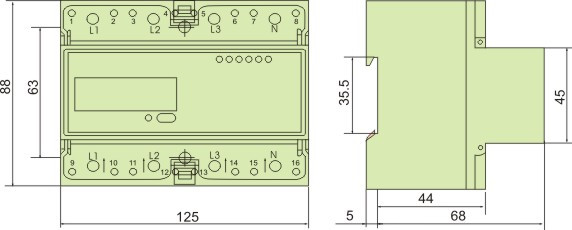

Dimension
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
