Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
Yomin
Model Number:
YEM074TI
Display Type:
Analog Only
Phase:
Single Phase
Measuring Energy Range:
10(20)A,20(40)A,30(60)A,40(80)A
Accuracy Class:
2.0
Output Voltage:
127V,230V
Operating Temperature:
-20°C~+60°C
Dimensions:
161x114x102mm
Type:
Single phase count electric kilowatt energy meter
Rated Current:
10(20)A,20(40)A,30(60)A,40(80)A
Display:
electric meter counter
Certificate:
RoHS
Frequency:
50HZ/60HZ
Rated voltage:
127V,230V
the cover:
pc material
class:
2
display:
counter
Supply Ability
Supply Ability
200000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Export carton
Port
Ningbo or Shanghai
Lead time:
Shipped in 5 days after payment

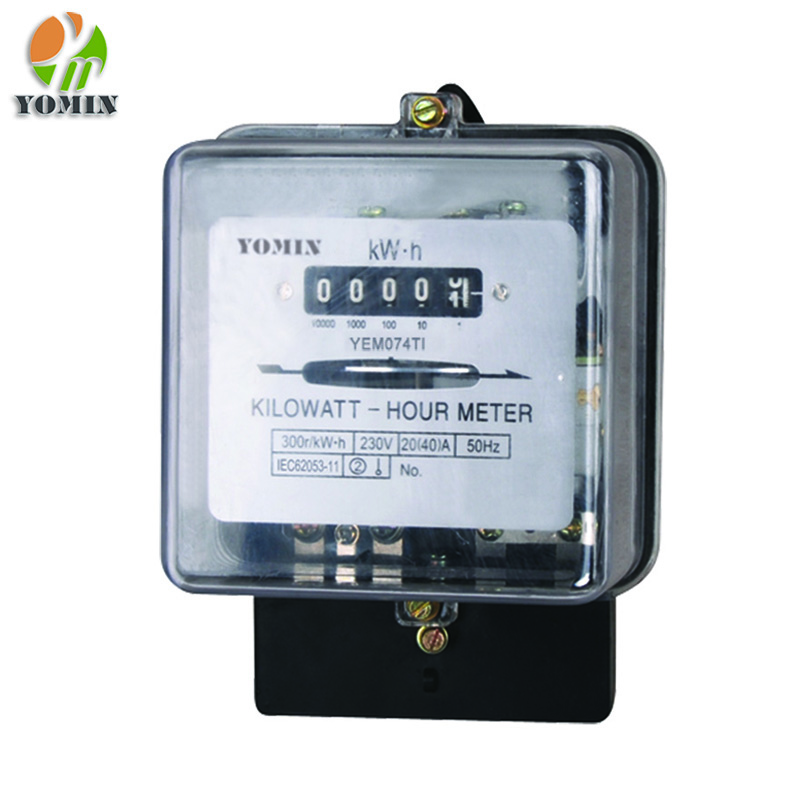

Single Phase Mechanical kwh Meter
Model YEM074TI single phase electromechanical front board setting active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD282 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accords with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurately and directly measure 50Hz or 60Hz active energy
consumption from single phase AC electricity net, it is used for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: compact structure design, small size, economy benefits,specious appearance, etc.
Features
Front board two fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall.It has following features: economy benefits, specious appearance, etc.
The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
Voltage components and current components is used of double insulation structure, has good electrical characteristics.
Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.
Standard configuration bottom bearing is used of single-precious stone bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. May select magnetic thrust bearing (Product Configuration code is TA) or double gem bearing (Product Configuration code is TE).
All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is TK).
Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TJ).
Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is UI).
Technical parameters
| Model | YEM074TI |
| Accuracy | 2.0 |
| Reference voltage | 127V,230V |
| Current specifictions(A) | 10(20)A,20(40)A,30(60)A,40(80)A |
| Starting current(A) | 0.05A,0.1A,0.15A,0.2A |
| Insulation performance | AC voltage 4KV for 1 minute, 1.2/50us waveform impulse voltage 6 KV |

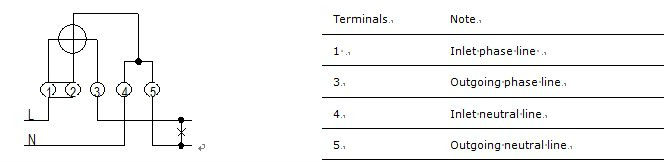

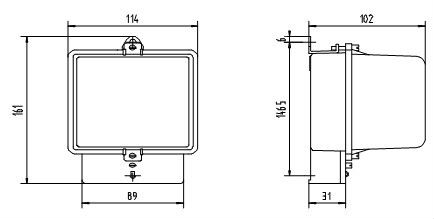

Dimension and wiring
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
