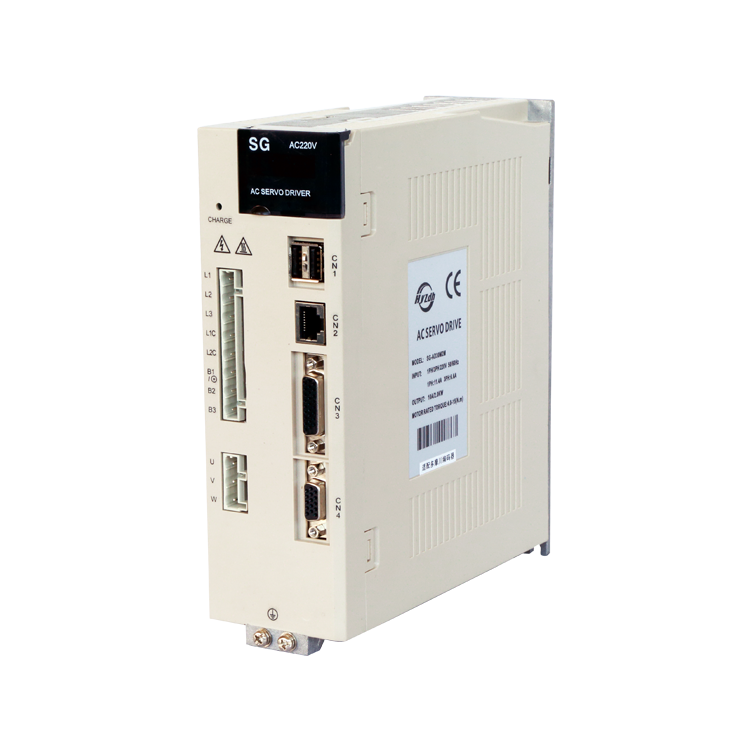

Picture Example:
Lead time:
| Quantity(pieces) | 1 - 10 | 11 - 100 | >100 |
| Lead time (days) | 5 | 15 | To be negotiated |
Easy Operated EtherCAT Modbus Speed Control Torque Control 400W 220V AC Servo Drive
Model | SG-AS15AF | SG-AS15AF(750w) | SG-AS30AF | SG-AS50AF | SG-AS75AF |
Input Signal | Pulse signal | Pulse signal | Pulse signal | Pulse signal | Pulse signal |
Rated current | 15A | 15A | 30A | 50A | 75A |
Output Power | 200-400W | 400-1000W | 1-2.6KW | 2-5KW | 2-5.5KW |
Encoder | 2500/5000 Incremental encoder 17bit 23bit Absolute encoder |
Support signal | MODBUS / 485 / Analog / CANOPEN / EtherCAT |
Control Mode | Position control, Speed control, JOG operation |
Application | For 60mm motor 200w-400w | For 60/80/90mm motor 400W-1KW | For ≤ 2.6KW motor | For ≤ 5KW motor ,Rated current ≤16.5A | For ≤ 7.5KW motor |
Operate Temperature | -10℃~55℃ |
Humidity | <90% (no frost) |
1. High level of integration
2. Fast response
3. Protect perfectly
4. High reliability
Yaskawa Sigma-7 type driver
Pls contact me for more details about the servo driver !
We have tamagawa incremental 2500PPR /17BITS and absolute 17BITS /23BITS !
STANDARD MODEL:SUPPORT PULSE AND DIRECTION, MODBUS RS485, INTERNAL POSITION CONTROL, AUTOMATIC TUNING
