Overview
Essential details
Warranty:
2years
Place of Origin:
Zhejiang, China
Brand Name:
XINYUHAI
Model Number:
YH-2DM860
Supply voltage:
24-110V
Normal work output current:
Min:1.3A Max:8.4A
Logic input current:
10mA
Rated current:
30A
Occasion:
Avoid oil mist,dust,corrosive gas
Storage temp:
-10℃-80℃
Max environment temp:
<65℃
Weight:
0.6kg
Vibration:
5.9m/s²Max
Certification:
CE ISO
Supply Ability
Supply Ability
10000 Set/Sets per Month
Packaging & delivery
Packaging Details
wooden box or carton for servo motor
Port
Ningbo/shanghai
Picture Example:
Lead time:
Quantity(pieces) 1 - 10 11 - 100 >100 Lead time (days) 5 20 To be negotiated
Video Description

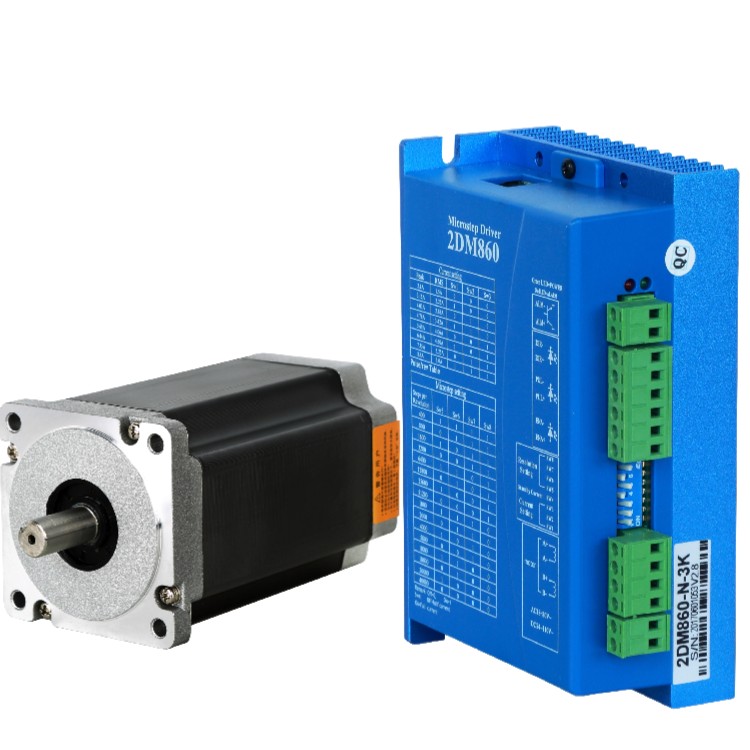

24-110V DC Max 8.4A Nema34 12Nm Closed Loop Stepper Motor Hybrid Servo Driver Kit CNC Engraving

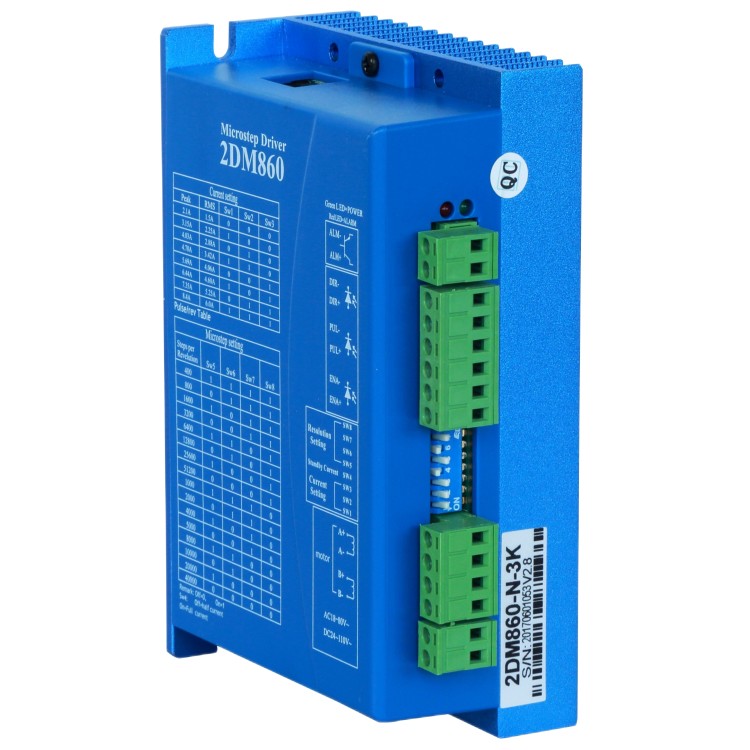

2DM860 is newest digital stepper motor driver launched by XinYuhai, using the latest 32-bit DSP control technology, the user can set any segment within 25600 and multi-range current value within rated current,with built-in micro technology,2DM860 driver greatly improved stability and reduced noise under subdivision. Integrating automatic parameter tuning function inside.it also can adjust the optimal operation parameters automatically for different motors to maximize the performance of the motor.
Key Features:
1,The new 32-bit DSP technology
2, Optically isolated differential inputs
3, Extra-low noise and vibration
4,The range is 2-128 and 2.5-50 microsteps
5, Built 500 high octave microstep ( selected microstep value)
6,Stationary current is automatically halved when stand still
7,Pulse frequency response up to 250KHz
8, Overvoltage, undervoltage, short circuit protection
9, Alarm output function I / O ports
10.Offline protection input ENA
the driver is for 2 phase stepper motor 57mm 86mm
voltage :40-110V DC./30V-80VAC
current : 1.5A-8.4A (peak)
