Overview
Essential details
Applicable Industries:
Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location:
Turkey, Italy, France, Germany, Viet Nam, Brazil, Mexico, Russia, Spain, Argentina, South Korea, Sri Lanka, Romania
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Shopping Bag
Material:
Plastic
Computerized:
Yes
Place of Origin:
Zhejiang, China
Brand Name:
WITY
Model Number:
DRQ-D1000
Voltage:
380V/50HZ/3Phase
Dimension(L*W*H):
3800x1650x1300mm
Weight:
1150KG, 1150KG
Warranty:
1 Year
Key Selling Points:
High Productivity
Marketing Type:
New Product 2021
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, PLC, Engine
Max.bag Width:
470mm*2
Bag Length:
70-650mm
Film thickness:
0.02-0.1mm
Speed:
300pcs/minx2
Power supply:
380V/50HZ
Max.Unwinding diameter:
550mm
Air compressor:
5HP
Total power:
15KW
Overal Size:
3800x1650x1300mm
After Warranty Service:
Video technical support, online support, Spare parts, Field maintenance and repair service
Local Service Location:
Germany, Indonesia, Pakistan, India, Mexico, Malaysia, Australia, Argentina, Chile, Romania
After-sales Service Provided:
online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Supply Ability
Supply Ability
20 Set/Sets per Month
Packaging & delivery
Packaging Details
Stretch film wiith wooden pallet
Port
Ningbo port or Shanghai port
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 30 To be negotiated
Video Description
Product Description

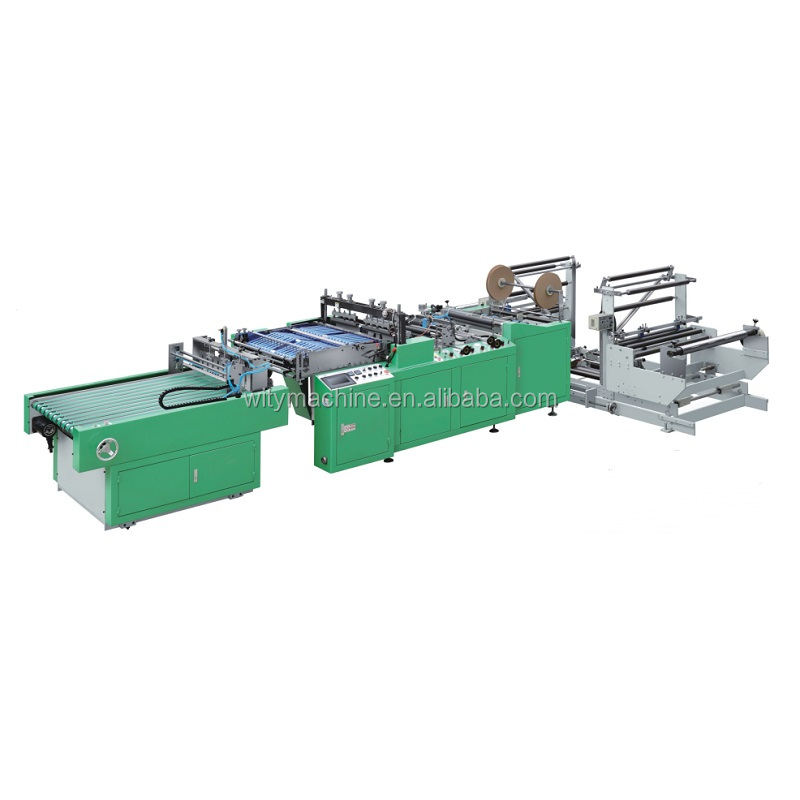

This machine is suitable for various kind of material such as BOPP, CPP, LDPE, HDPE, POF & laminated film,etc, which with printed or without printed. It is a kind of ideal equipment for making Stationery bag, ornaments bag, garment Bag, food bag and hang bag.
Specification
Feature
a. Touch screen operating, SYMAC movement control, easy operation b. The main motor speed, traction speed and unwinding speed synchronization controlled. c. The whole machine adopts double servo motor drive, two sets of photoelectric eye mark tracking, can also produce two different size of printed bag at same time. d. Accurate tracking printing pattern, automatic stop and alarm when missing printed mark. e. Two sets of pneumatic puncher, the punching position can be adjusted independently. f. Main motor controlled by frequency inverter, easy operation and reduce power consumption. g. Automatic counting, can preset the stack number according request quantity. h. Firm and smooth bag sealing .
Details Images
Heat sealing knife
Panasonic brand photocell
Round hole punchers
Traction rollers

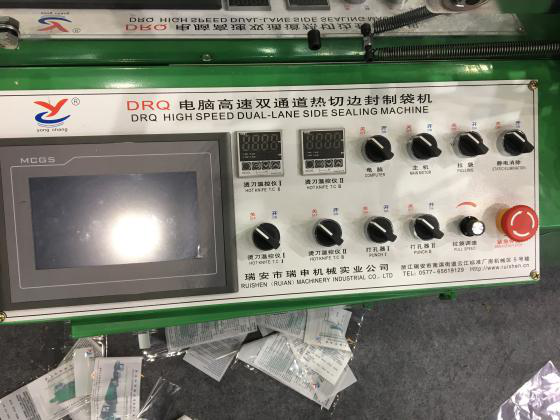

Touch screen Operation
Dimensions(L*W*H):
3500*2330*2100mm
Weight:
2000kg (estimate)
Warranty:
1 Year
Key Selling Points:
Multifunctional
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, Other, PLC, Gear, Bearing, Gearbox
Maximum rewinding diameter:
700 mm
Maximum winding diameter:
700 mm
Embossing speed:
20 ~ 60 m/min
Maximum mechanical velocity:
80 m/min
Tension control range:
3 ~ 25 kgf
Main servo drive motor:
4kw
Reel drive motor:
2.2 kw
Capacity:
60kw
Working power supply:
AC380/3P/5wires
After Warranty Service:
Video technical support, online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Japan, Malaysia, Australia
Showroom Location:
Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Morocco, Kenya
After-sales Service Provided:
online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Marketing Type:
New Product 2020
Supply Ability
Supply Ability
5 Set/Sets per Month day
Packaging & delivery
Packaging Details
Standard Export Package
Port
Shanghai or Ningbo
Picture Example:
Lead time:
Quantity(sets) 1 - 1 >1 Lead time (days) 35 To be negotiated
online Customization
Click the image below to start online customization for the design you want.
Customise Now
Video Description
Product Description
Multi-function Holographic Seamless Embossing Machine
This machine is mainly used for embossing seamless holographic film. This machine is suitable for holographic embossing seamless BOPP, CPP, rainbow film, pillar film, glitter film, multi-lens film, wire drawing film, and so on. It is widely applied in tobacco, wine, and soft package, transfer film and other holographic packaging fields.
Features
1. The machine combines two machines, seamless film embossing and film embossing film machine, with double unwinders and double rewinders. It is non-interference, without nickel plate, which saves material cost. The laser can achieve high brightness and high resolution. 2. It uses PET seamless laser film as mother film, instead of nickel plate. The principle is that the pattern of PET seamless film imprinted on the BOPP. The PET seamless mother laser film can be repeatedly embossed dozens of times. After embossing, the PET film can also be used for package. 3. It has web-guiding control system, auto feeding, take-up system, which is to make sure the embossing roller surface temperature stabilized at ±1℃, also to ensure that the embossing material is not deformed due to temperature change.
Specification
Details Images
