Overview
Essential details
Warranty:
1year
Customized support:
ODM
Brand Name:
Yuanda
Model Number:
IPIP
Place of Origin:
Zhejiang, China
Application:
Drinking water treatment, Irrigation and Agriculture, Water Treatment Solutions, deep-wel
Horsepower:
750
Power Source:
solar
Pressure:
Other
Structure:
Multistage Pump
Outlet Size:
1.5 in
Voltage:
72
Power:
800, solar power
Usage:
Water
Impeller:
Plastic Impeller
Fuel:
solar power
Certification:
ce
Packaging & delivery
Packaging Details
Carton and wooden box or with customer's requirements.
Picture Example:
Lead time:
Quantity(pieces) 1 - 100 101 - 200 >200 Lead time (days) 10 20 To be negotiated
Product Description

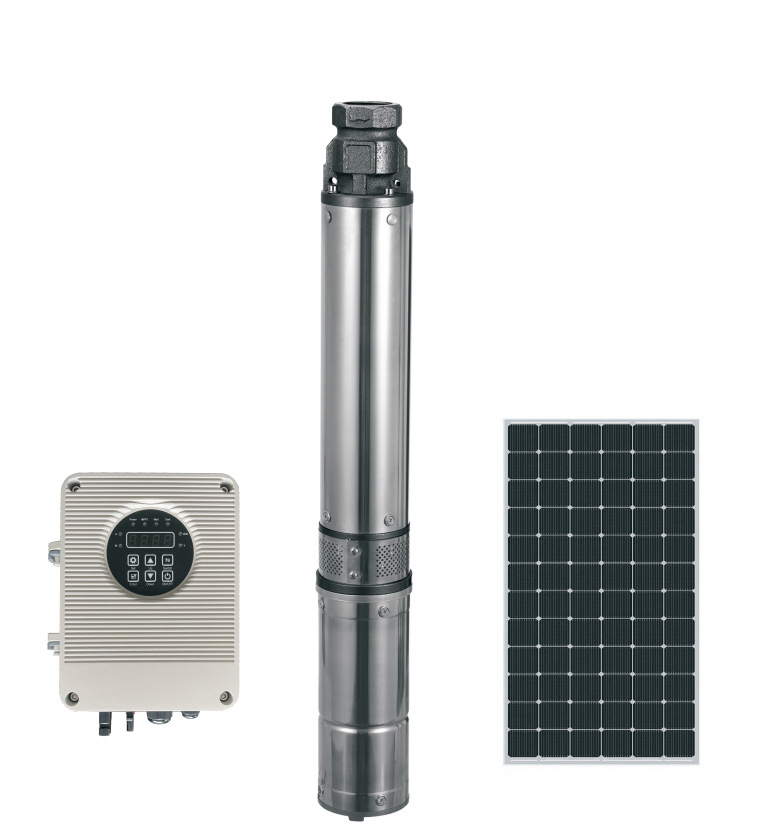

Cast Iron Submersible solar pump
This deep-well pump can be widely used for wide-distance water irrigation, gardening aquaculture, etc., because of the high power,
maximum head and high efficiency.
In addition, because of the Solar panel, solar power is one of the new energy to be alternative with the electricity power, which
is utility in somewhere is not able to use electricity. It is also an environmentally friendly pump.
Details Images
The functions of external controller:
A. Low-voltage protection (automatically)
B. Over current protection (automatically)
C. Temperature protection
D. Lack of phase protection
E. Protection for low water level in well (WEL, GND sensor)
F. Protection for full water in tank (TH, GND sensor)
G. MPPT function
H. Optional choice of battery with solar battery charging system
I. Optional SIM card: pump can be turned on or off by your cell
phone
J. Intelligent controller display for malfunction
SOLAR PANEL
MAIN FEATURES:
1) The pump is made by Stainless Steel and cast iron and plastic, such as outlet, pump body, head, impeller, coupling and shaft core. The part with colour black is made by cast iron.
2) There is internal controller.
3) The impeller is plastic.
4) It's a DC pump
5) Motor type is permanent magnet motor.
6) Pump is with Oil cooling.
6) Automatically recovery by the water- level fluctuation.
8) High Quality with tests before delivery.
9) Energy saving.

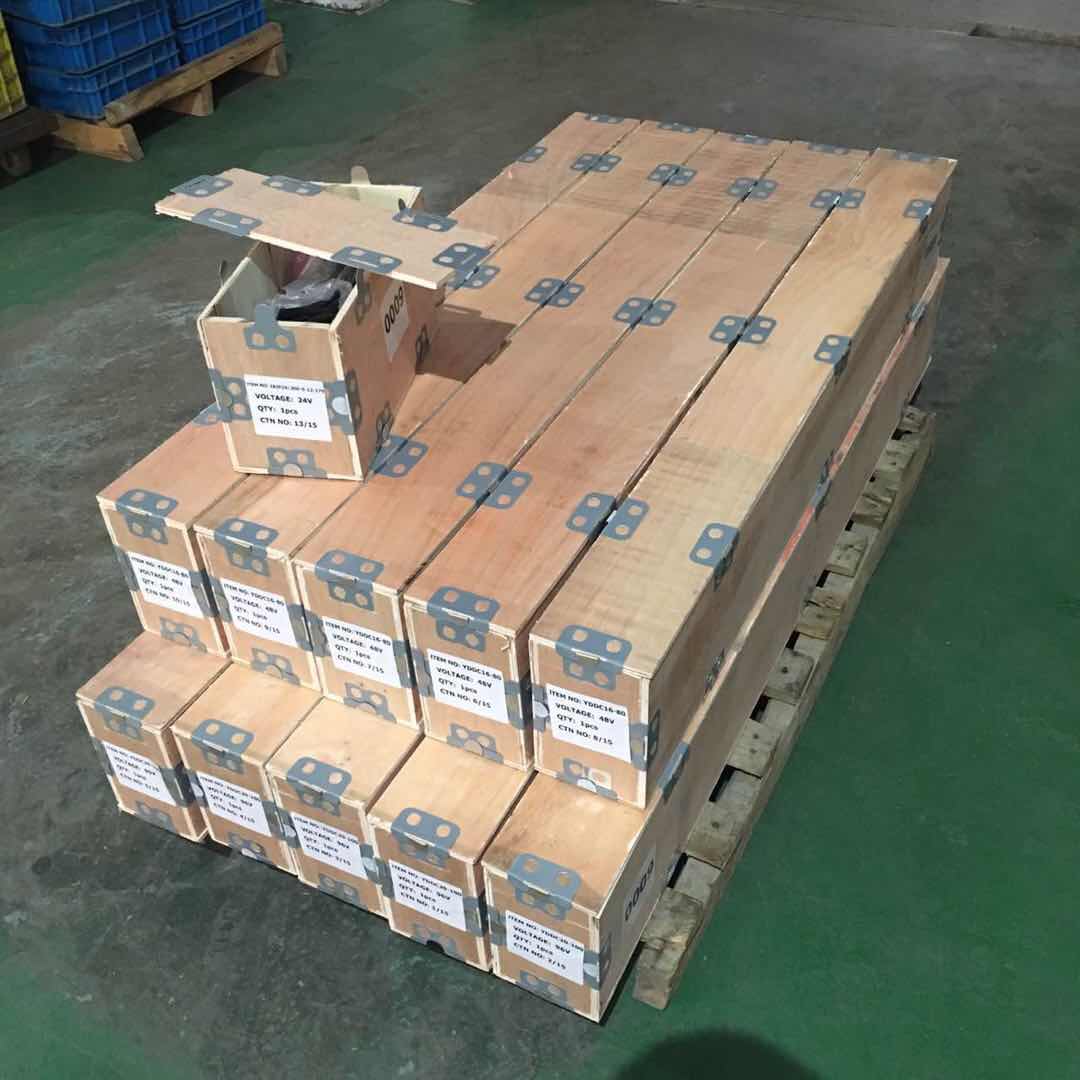

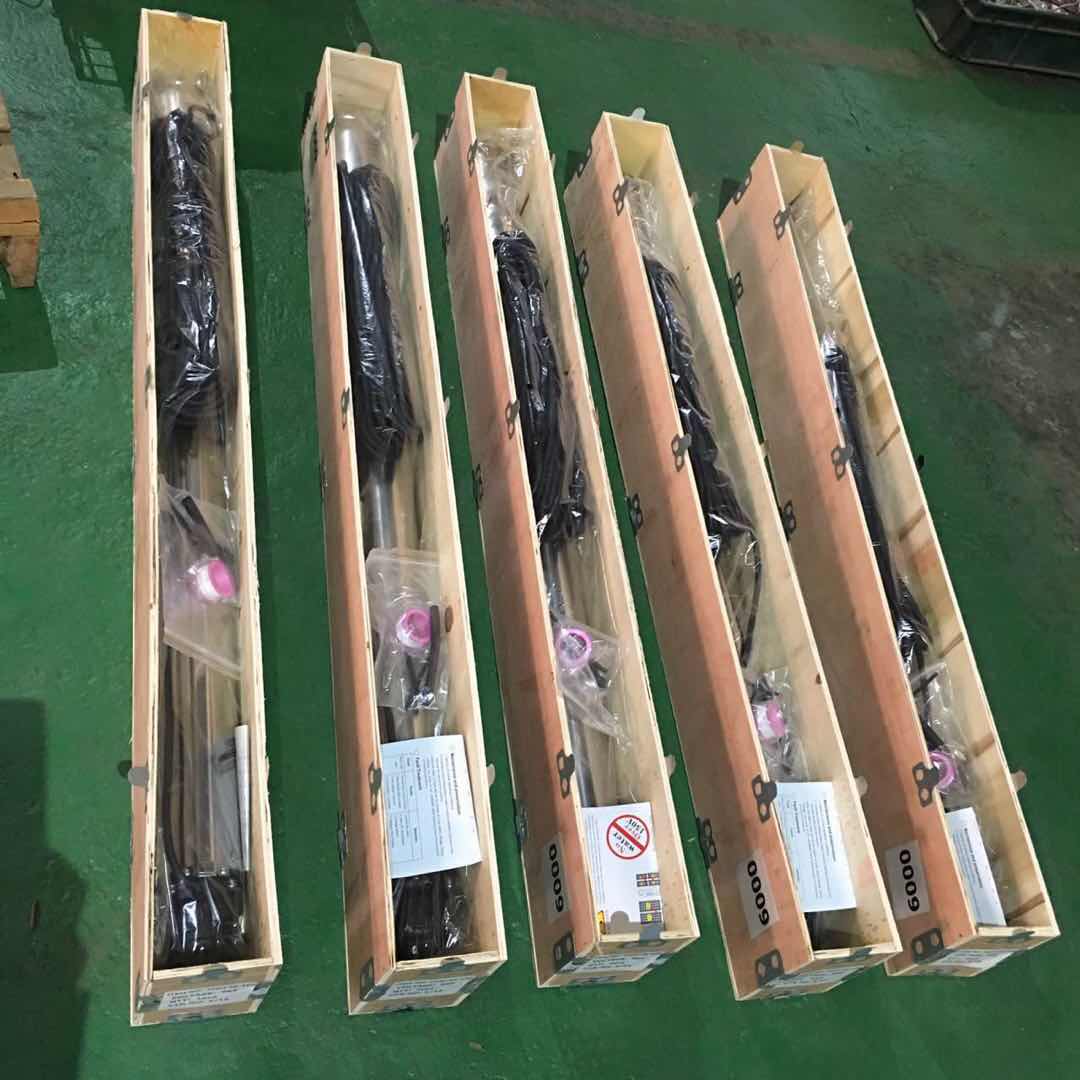

Product packaging
We have wooden and carton packing box
We also can packing with customer's specific requirement.
PACKING SERVICE:
Customers can require the method and material of package, such as Carton and wooden box, etc.
