Home > Sell > Spark Plug cable FEP insulation cable

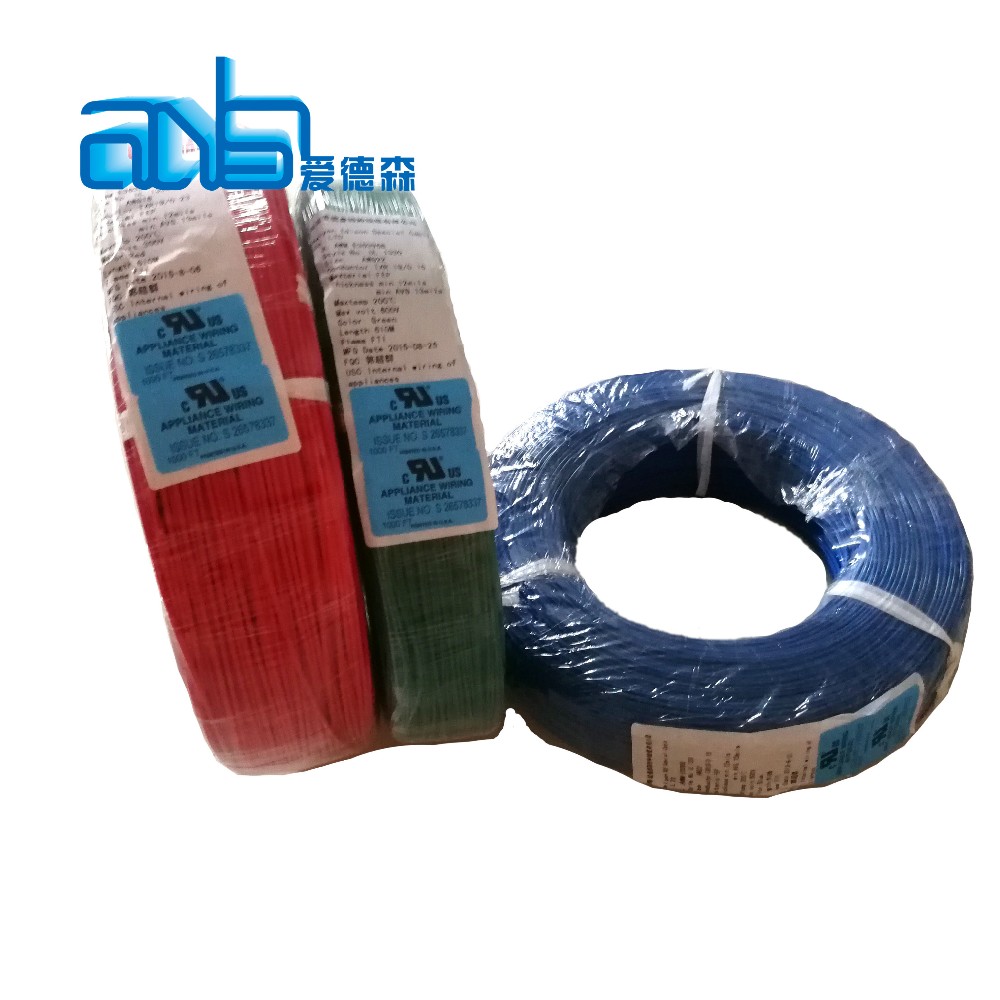

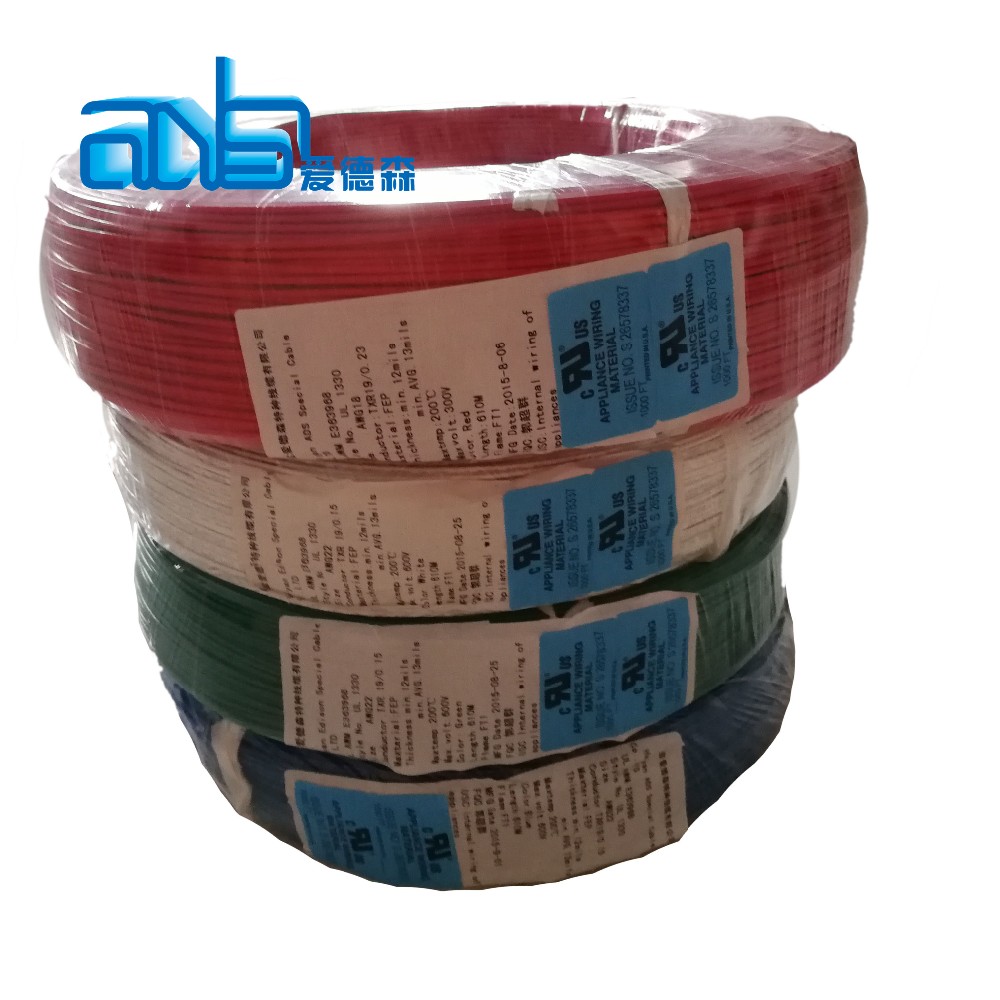

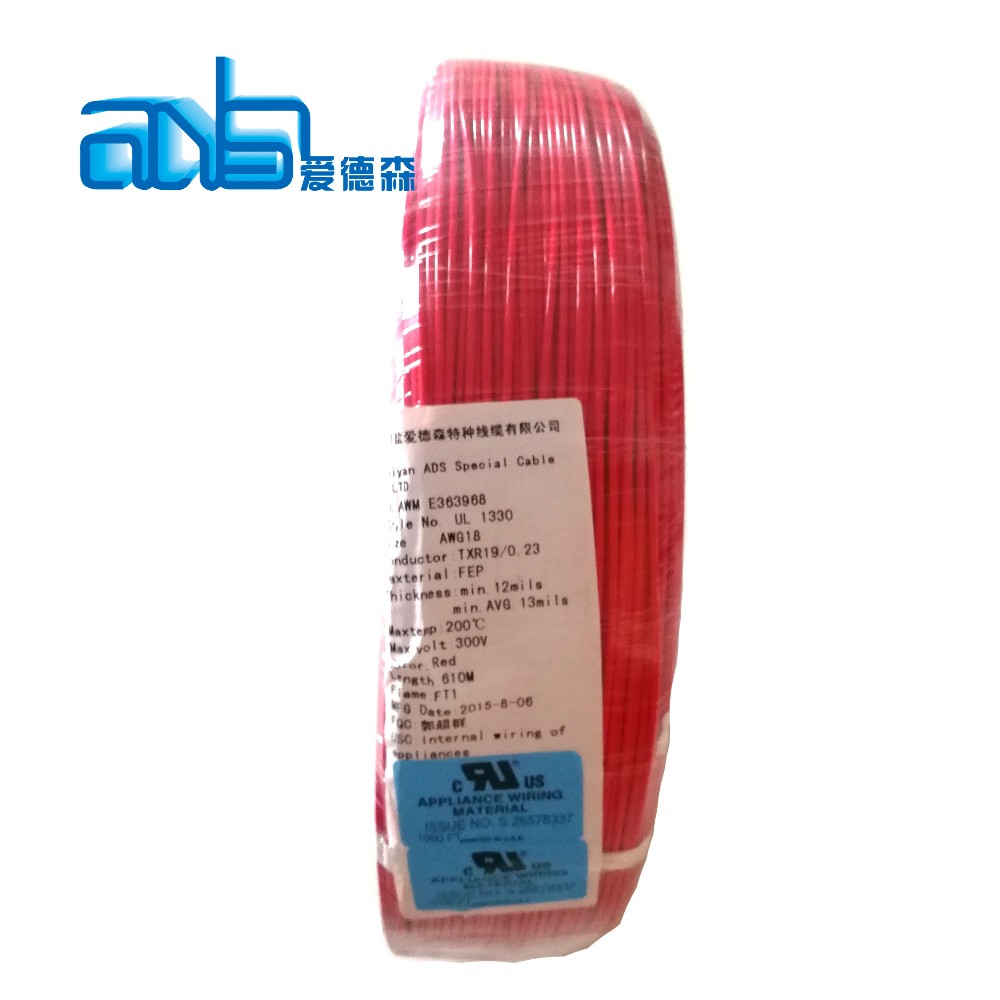

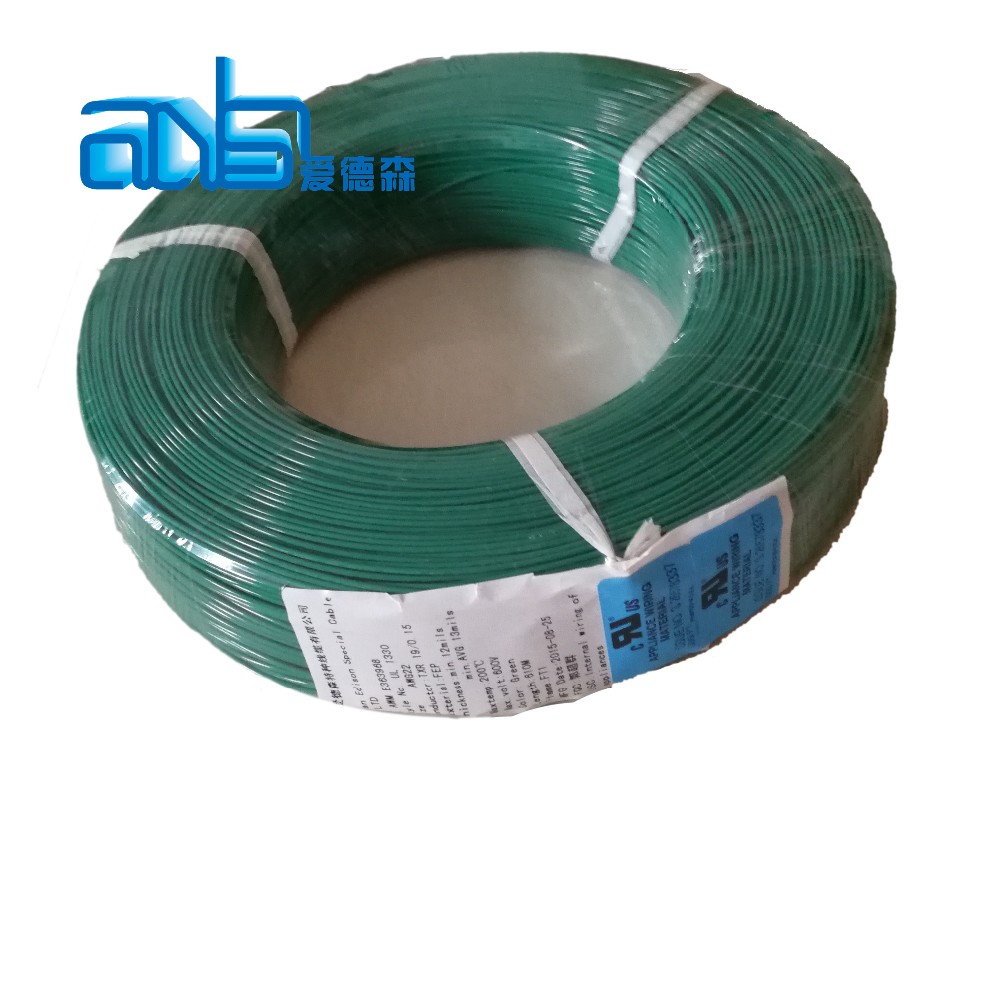

Spark Plug cable FEP insulation cable
Hits: 5500
Price: 100.00Dollar/meters
Min quantity: 100 meters
Quantity: 10000 meters
Deliver: In days
Expiry: Long-term
Update date 2022-10-21 10:51

Detail

Overview

Essential details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • ADS

  • Model Number:

  • uL1330

  • Type:

  • insulated

  • Application:

  • Heating

  • Conductor Material:

  • Copper

  • Conductor Type:

  • Stranded

  • Insulation Material:

  • FeP

  • Insulation:

  • FEP

  • Packing:

  • 305M

  • Voltage:

  • 600V

  • Temperature range:

  • 200℃

  • Conductor:

  • Tinned Cu,bare copper

  • Size:

  • 12awg-36awg

  • Shape:

  • round

  • Certification:

  • UL1330

  • Color:

  • red, black,blue,green,yellow

  • MOQ:

  • 5000M

Packaging & delivery

  • Selling Units:

  • Multiple of 1000

  • Package size per batch:

  • 40X40X40 cm

  • Gross weight per batch:

  • 10.000 kg

  • Package Type:

  • Carton
  • Lead time:

  • Quantity(meters)1 - 1000>1000
    Lead time (days)2To be negotiated

Video Description

00:03

00:30

Product Description

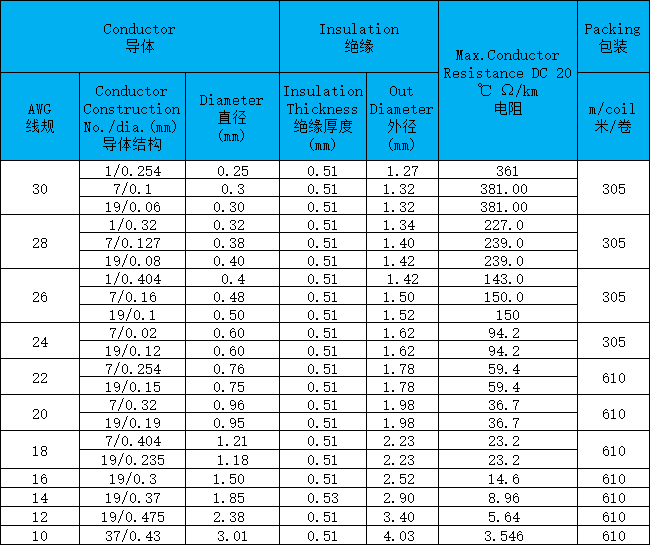

Style 1330 Insulated Wire


Rating: 200 deg C, 600 Vac, Horizontal flame, Optional Oil Resistant 80 deg C, Optional Gasoline Resistant.
Conductor: 30 AWG - 4/0 AWG, solid or stranded.
Insulation: FEP.
Covering: Optional, FEP, 10 mils or heavier or glass braid 7 mils or heavier.
Standard: Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal Wiring of Appliances.
In addition, the tag may also indicate the following: Suitable for immersion in gasoline; gasoline vapor; and 80 deg. C in oil.

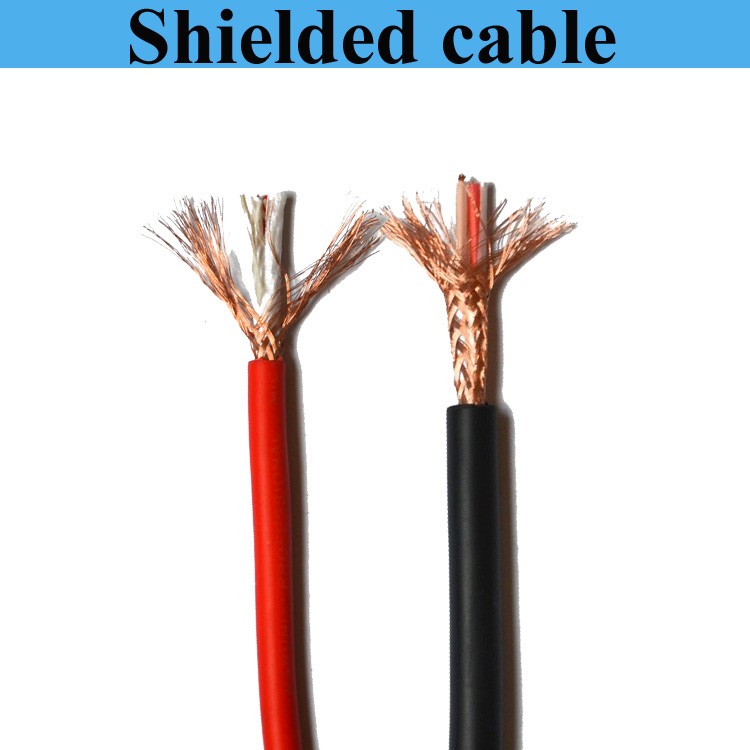

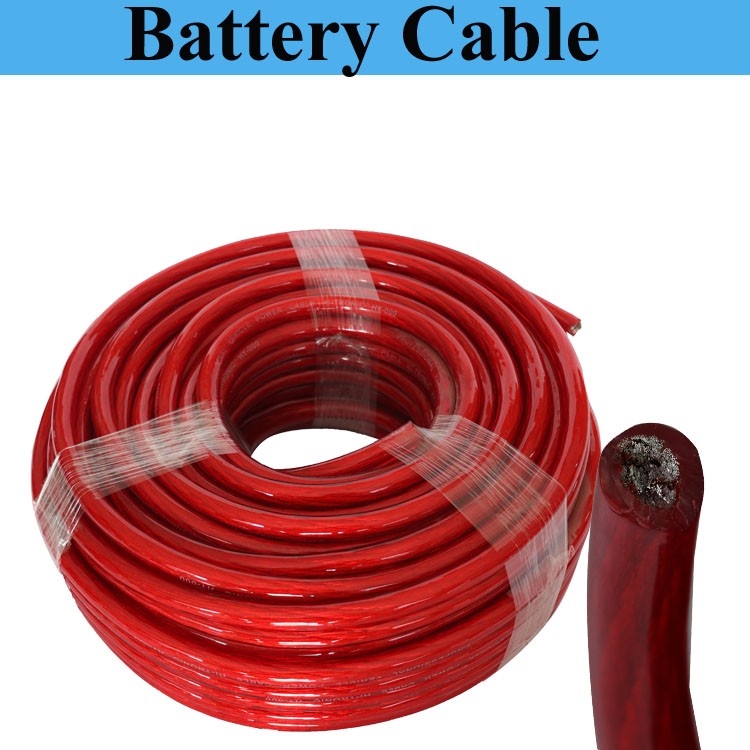

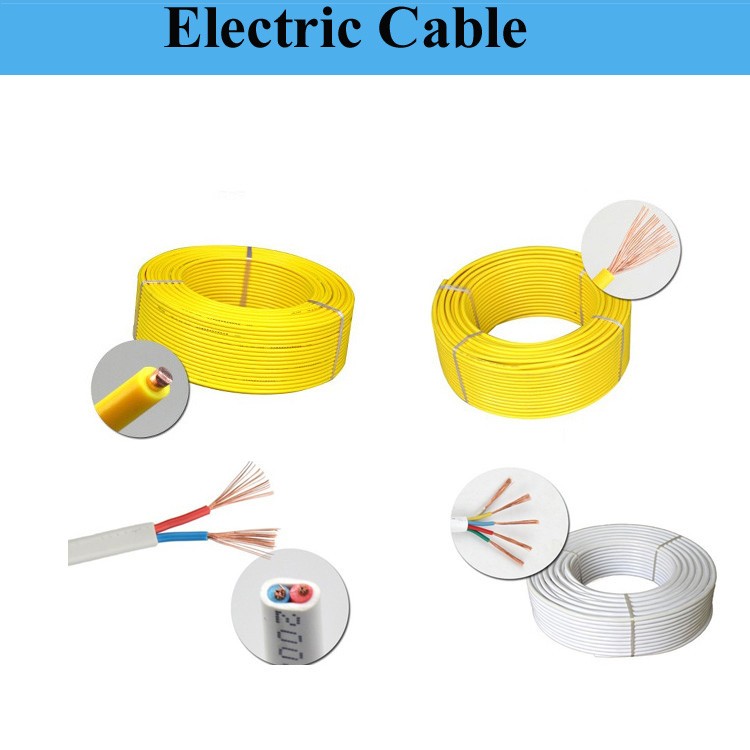

Our Main Product
