Home > Sell > Hot Seller UL1571 PVC Insulation 30V Single Core Solid Copper Tinned Copper Hook Up AWM 1571 OEM Ele
Hot Seller UL1571 PVC Insulation 30V Single Core Solid Copper Tinned Copper Hook Up AWM 1571 OEM Ele
Hits: 5500
Price: 0.25Dollar/meters
Min quantity: 10000 meters
Quantity: 1000000 meters
Deliver: In days
Expiry: Long-term
Update date 2022-10-21 10:49

Detail

Overview

Essential details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • ADS

  • Model Number:

  • UL1571

  • Type:

  • insulated

  • Application:

  • Other

  • Conductor Material:

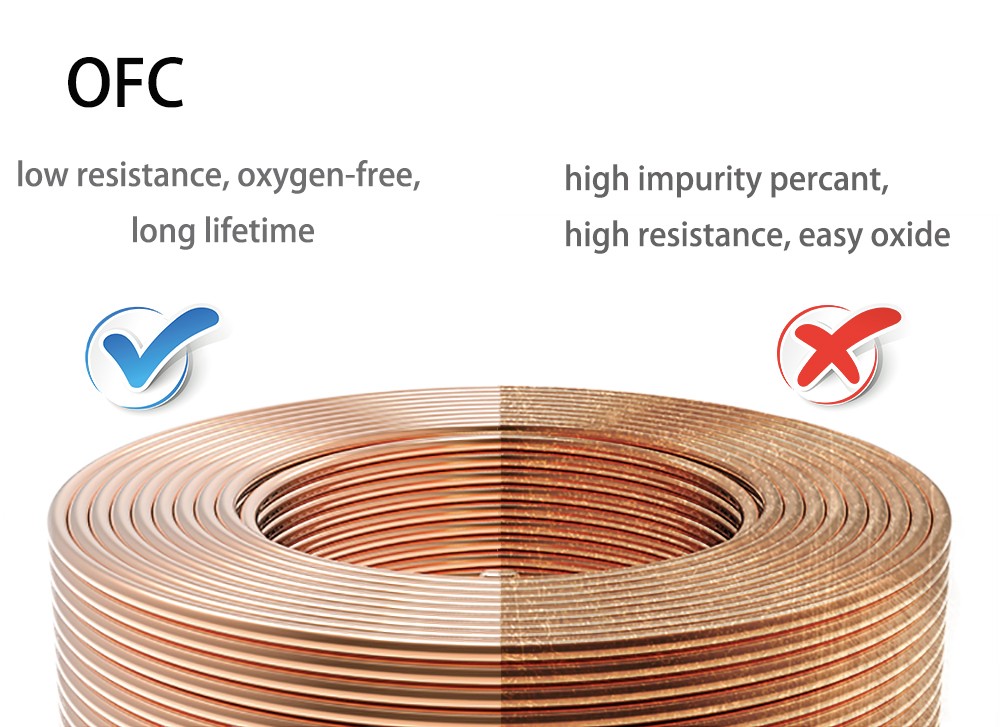

  • copper,CCA,OFC,TC,TCCA,CCC,CCAM,CCS

  • Conductor Type:

  • Stranded

  • Insulation Material:

  • PVC,PE

  • Color:

  • black,red,yellow,blue,white,green

  • Packing:

  • 100m/roll

  • MOQ:

  • 5000Meters

  • Size:

  • Customized Size

  • Length:

  • Customized Length

  • Shape:

  • Round/flat

Supply Ability

  • Supply Ability

  • 10000 Meter/Meters per Week

Packaging & delivery

  • Packaging Details

  • coil, plastic reel, wooden drum, or as customer required
  • Port

  • Shanghai/Ningbo
  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(meters)1 - 50005001 - 10000>10000
    Lead time (days)1015To be negotiated

ADS Special Cable

Product Description

Note: Price is based on the salesman's quotation.
Automotive Cable


Rated temperature: 80℃

●Reference standard: DIN72551/1991

●Stranded, tinned or bare copper conductor 0.22~2.5mm2

●PVC insulation ,comply with ROHS environmental standard

●Passes DIN 72551-5/1991 3.7.1 flame test

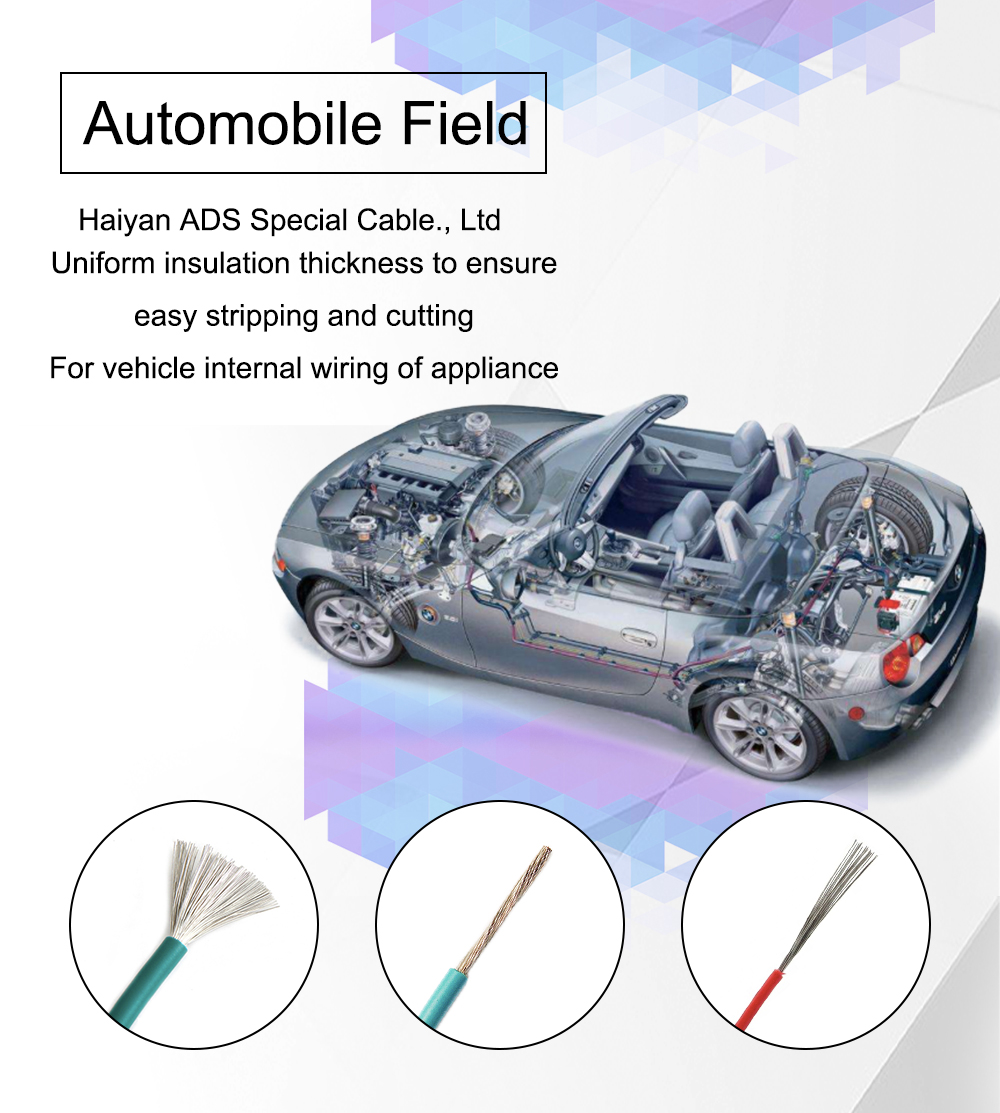

●Uniform insulation thickness toensure easy stripping and cutting

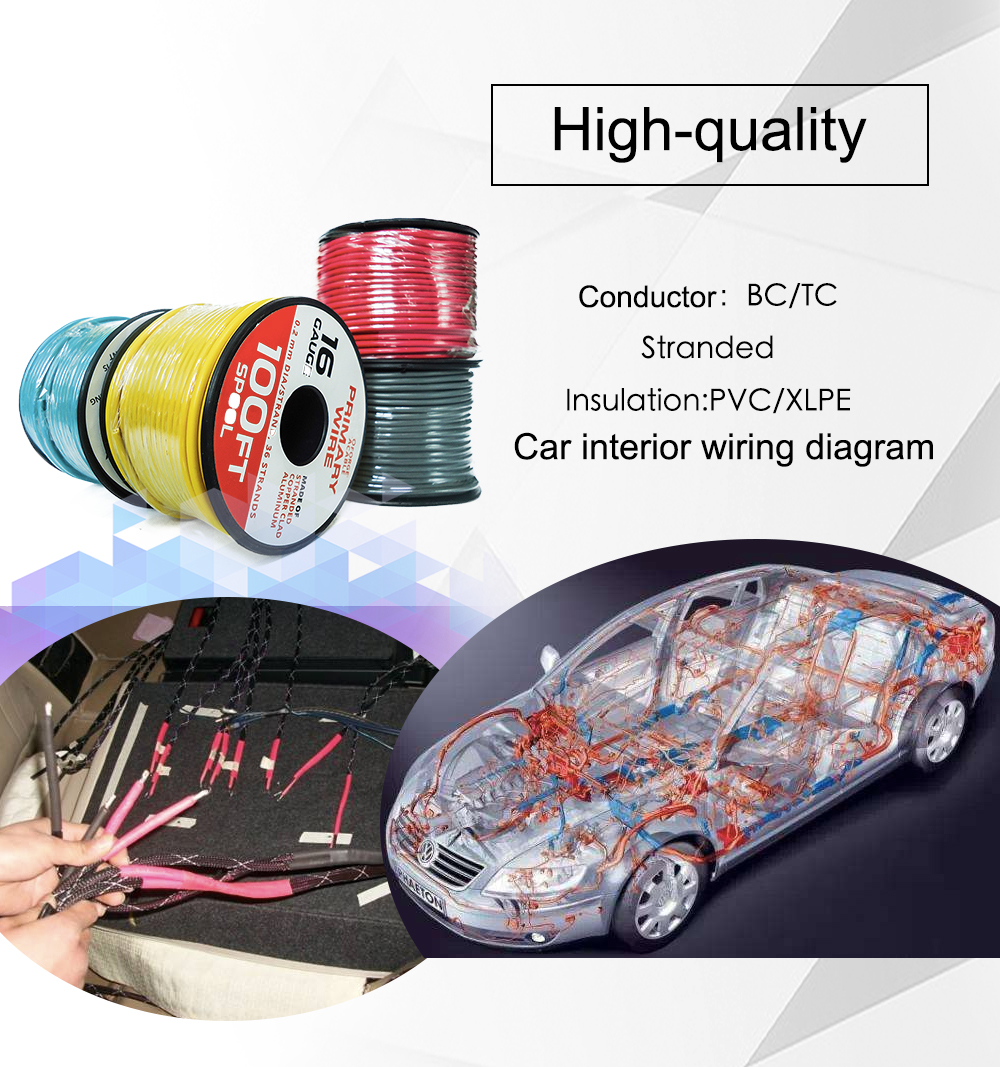

●For vehicle internal wiring of appliance

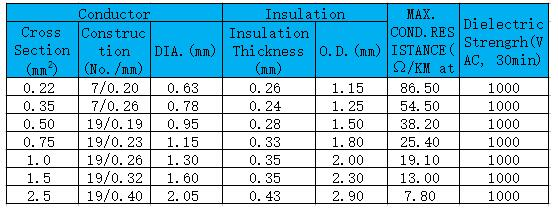

CABLE CONSTRUCTION

Conductor

Insulation

Max Cond.resistance (Ω/km,20℃,DC)

Dielectric Strength
(VAC,30min)

Cross Section (mm2)

Construct(No./mm)

Dia.(mm)

Thickness(mm)

O.D.(mm)

0.22

7/0.21

0.63

0.26

1.15

86.5

1000

0.35

7/0.26

0.78

0.24

1.25

54.50

1000

0.5

19/0.19

0.95

0.28

1.50

38.20

1000

0.75

19/0.23

1.15

0.33

1.80

25.40

1000

1

19/0.26

1.30

0.35

2.00

19.10

1000

1.5

19/0.32

1.60

0.35

2.30

13.00

1000

2.5

19/0.41

2.05

0.43

2.90

7.80

1000
