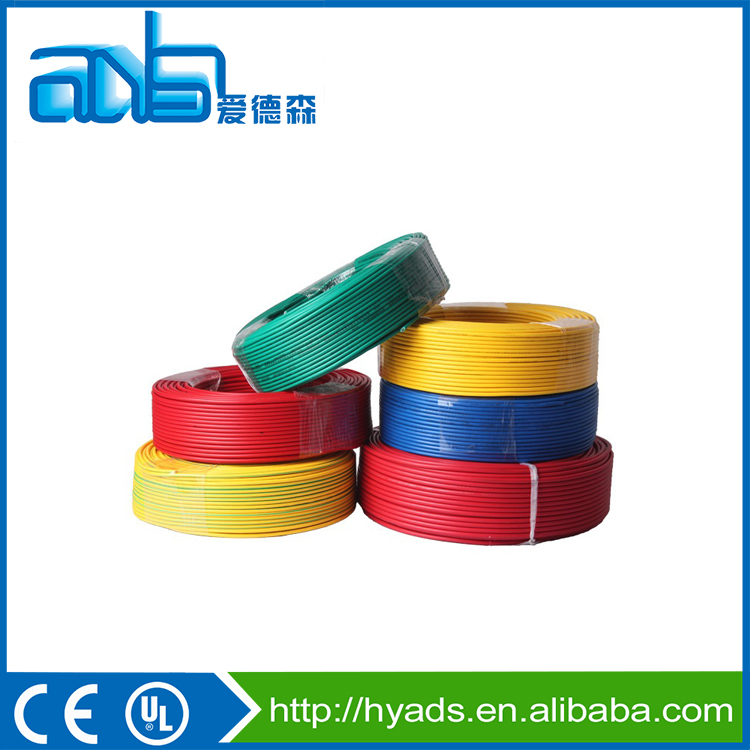

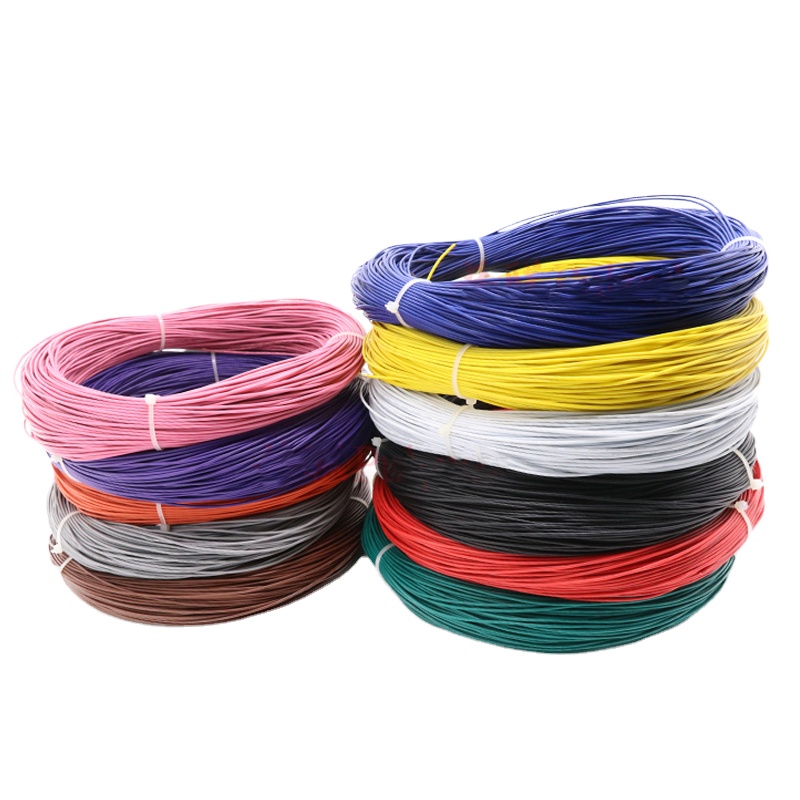

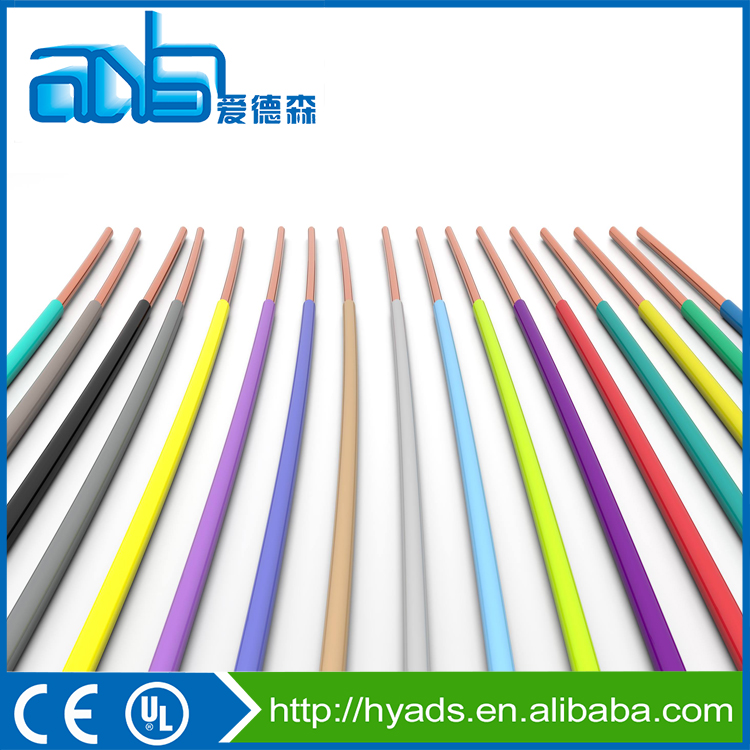

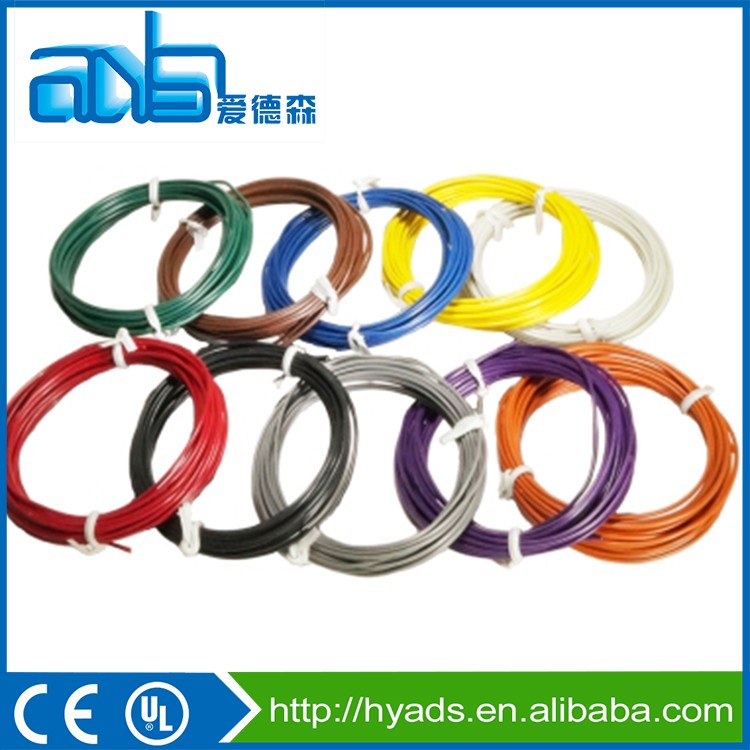

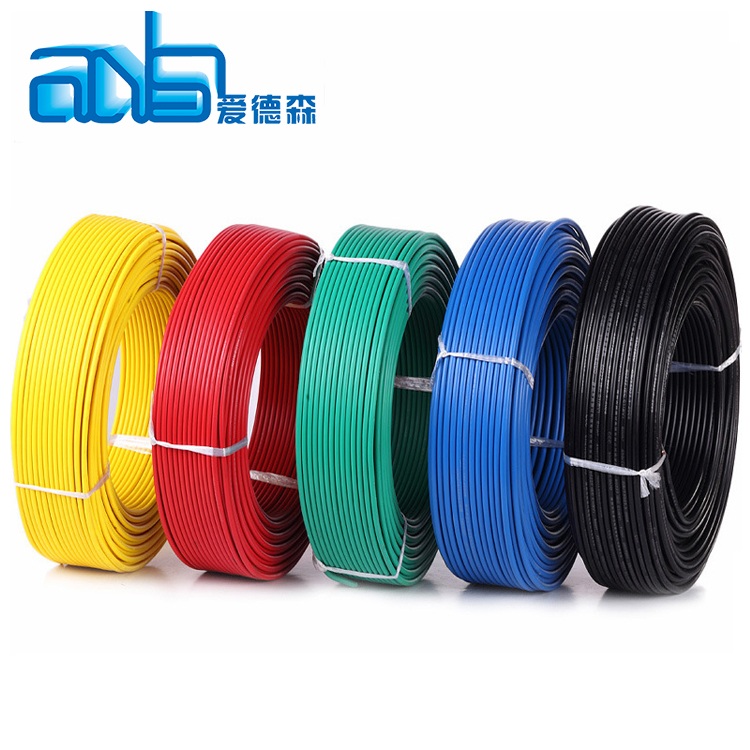

American Standard Golden Supplier UL 1007 Electric PVC 20AWG Wire Heating Single Core Flexible Power
Hits: 4581
Price: 0.25Dollar/meters
Min quantity: 10000 meters
Quantity: 1000000 meters
Deliver: In days
Expiry: Long-term
Update date 2022-10-21 10:48

Detail

Overview

Essential details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • ADS

  • Model Number:

  • UL1007

  • Type:

  • insulated

  • Application:

  • Other

  • Conductor Material:

  • copper,CCA,OFC,TC,TCCA,CCC,CCAM,CCS

  • Conductor Type:

  • Stranded

  • Insulation Material:

  • PVC,PE

  • Color:

  • black,red,yellow,blue,white,green

  • Packing:

  • 100m/roll

  • MOQ:

  • 5000Meters

  • Size:

  • Customized Size

  • Length:

  • Customized Length

  • Shape:

  • Round/flat

  • Certification:

  • UL Certification

  • Insulation:

  • PVC Insulation Cable

  • Conductor:

  • Copper Core

  • Delivery time:

  • 7-30 Days

Supply Ability

  • Supply Ability

  • 10000 Meter/Meters per Week

Packaging & delivery

  • Packaging Details

  • coil, plastic reel, wooden drum, or as customer required
  • Port

  • Shanghai/Ningbo
  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(meters)1 - 50005001 - 10000>10000
    Lead time (days)1015To be negotiated

ADS Special Cable

Product Description

Note: Price is based on the salesman's quotation.
Automotive Cable


Rated temperature: 80℃

●Reference standard: DIN72551/1991

●Stranded, tinned or bare copper conductor 0.22~2.5mm2

●PVC insulation ,comply with ROHS environmental standard

●Passes DIN 72551-5/1991 3.7.1 flame test

●Uniform insulation thickness toensure easy stripping and cutting

●For vehicle internal wiring of appliance

CABLE CONSTRUCTION

Conductor

Insulation

Max Cond.resistance (Ω/km,20℃,DC)

Dielectric Strength
(VAC,30min)

Cross Section (mm2)

Construct(No./mm)

Dia.(mm)

Thickness(mm)

O.D.(mm)

0.22

7/0.21

0.63

0.26

1.15

86.5

1000

0.35

7/0.26

0.78

0.24

1.25

54.50

1000

0.5

19/0.19

0.95

0.28

1.50

38.20

1000

0.75

19/0.23

1.15

0.33

1.80

25.40

1000

1

19/0.26

1.30

0.35

2.00

19.10

1000

1.5

19/0.32

1.60

0.35

2.30

13.00

1000

2.5

19/0.41

2.05

0.43

2.90

7.80

1000
