Overview
Essential details
With Modem Function:
NO
Standards And Protocols:
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Encryption Type:
WPA2-PSK, WPA-PSK
Products Status:
New
Type:
Wireless
LAN Ports:
4
Brand Name:
Dusun
Place of Origin:
Zhejiang, China
Wireless Rate:
300Mbps
Chipset:
RTL8196E + RTL8192ER
Standard:
IEEE802.11n,IEEE802.11g,IEEE802.11b
Frequency Range:
2.4-2.4835GHz
Antenna:
2*5dBi fixed Antenna
Supply Ability
Supply Ability
100000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
1. Carton Box with instruction
2. Custom Packing Box and logo Printing for customer's requirements
Port
Ningbo/Shanghai Port
Lead time:
Quantity(pieces) 1 - 1000 1001 - 100000 >100000 Lead time (days) 15 20 To be negotiated
Product Description

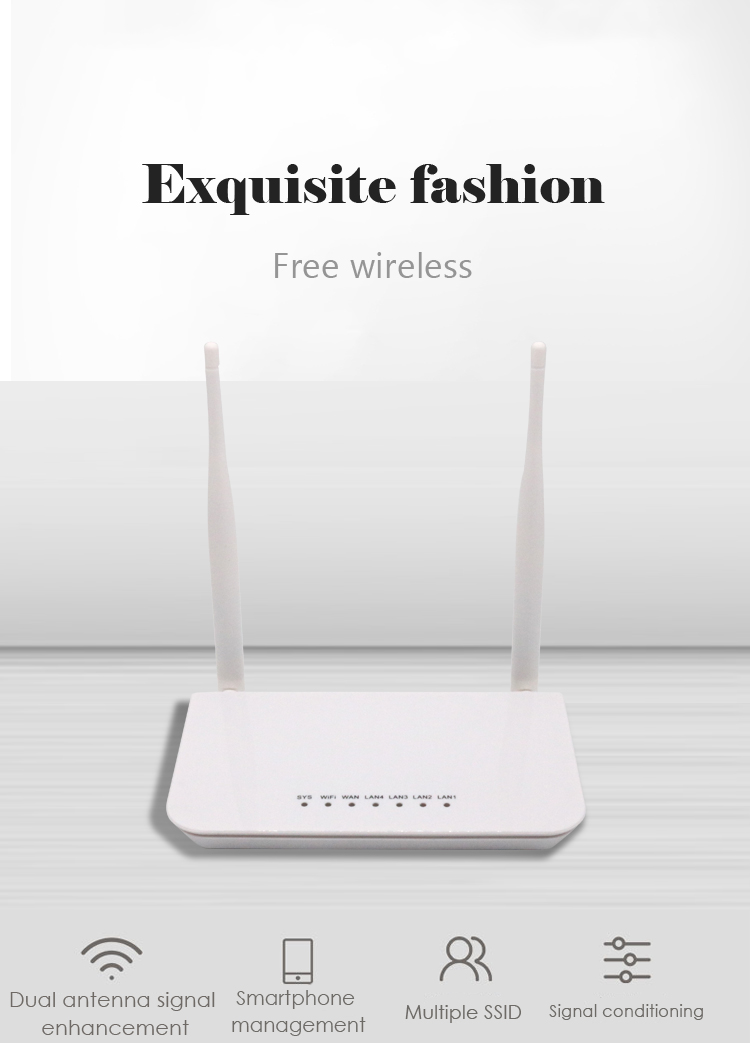

The Wireless Mini Router, supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 b/g standards. It supports data rate up to 300 Mbps. The Wireless Mini Router is Mainly used for providing free WIFI service in big area such as factory, community, street or etc. It supports WEP, WPS and WPA/WPA2 of personal and enterprise encryption standards.
Parameter | Specifications |
Chipset | RTL8676S+ 8271+ 8192 |
DDR/SDR SDRAM | 16MB SDRAM |
Serial Flash | 4 MB |
Features | 2T2R MIMO, wireless rates of up to 300Mbps Parent Control PPPoE, PPPoA, IPoE WAN connection. DHCP Server and DHCP Relay 802.1q VLAN NAT and NAPT ALG: TFTP/FTP/SIP/RTSP/L2TP/PPTP/IPSEC/H323 Virtual Server and Port Trigger DDNS Manual configuration of DNS QoS: Strict prior and WFQ DoS(denial-of-service) protect MAC filter, IP filter and URL filter Web / Telnet / SSH / FTP / TFTP /SNMP/ Ping local and remote accesscontrol UPnP IGMP Snooping and IGMP proxy Static route Dynamic routing management, RIPV1, RIPV2 NTP DMZ |
Protocols | RFC2684 VC-MUX, LLC encapsulations for bridged or routed packets RFC2364 PPP over ATM ALL5(PPPoA) RFC2516 PPP over Ethernet (PPPoE) RFC768 User Datagram Protocol (UDP) RFC791 Internet Protocol (IP) RFC792 Internet Control Message Protocol (ICMP) RFC793 Transmission Control Protocol (TCP) RFC826 An Ethernet Address Resolution Protocol (ARP) IPoE (IP over Ethernet over AAL5) G.992.1 (T1.413) G.992.2 (G.dmt), G.lite G.992.3 (G.bis/ADS L2) G.992.5 (ADSL2+) Annex L (reach extended ADSL2) |
Wireless | Standard: IEEE802.11b/g/n Frequency Range: 2.4GHz~2.4835GHz Modulation: BPSK, QPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) Wireless data rate: 300M Channel: 1~11(USA, Canada 1~13(Europe) 1~14(Japan) Security: 64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2 |
Device Management | Web based GUI (HTTP Management) TR069 ( WAN Management Protocol ) SNMP Menu-driven CLI via serial port or telnet Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0) |
Interface | 1 x RJ11 DSL interface 1 x WLAN 4 x RJ45 10/100m Auto MDI/MDIX Ethernet interfaces 1 x power switch |
Environment | Operating Temperature: 0ºC—40ºC Storage Temperature: -20ºC—70ºC Operating Humidity: 10%—95%, non-condensing Storage Humidity: 5%—95%, non-condensing |
Power Supply | 12 V /0.5A |
