Min quantity:5000Piece
Quantity:100000Piece
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
liwang
Model Number:
Insulator
Color:
customized
Voltage:
customized
Current:
customized
conductor:
T2 soft state copper belt
Material:
copper wire
insulation layer:
PVC & TPE
features:
easy processing and forming
Application:
electronical wiring
Package:
Carton box
Supply Ability
Supply Ability
10000 Piece/Pieces per Week copper busbar
Packaging & delivery
Packaging Details
export standard package
Port
shanghai

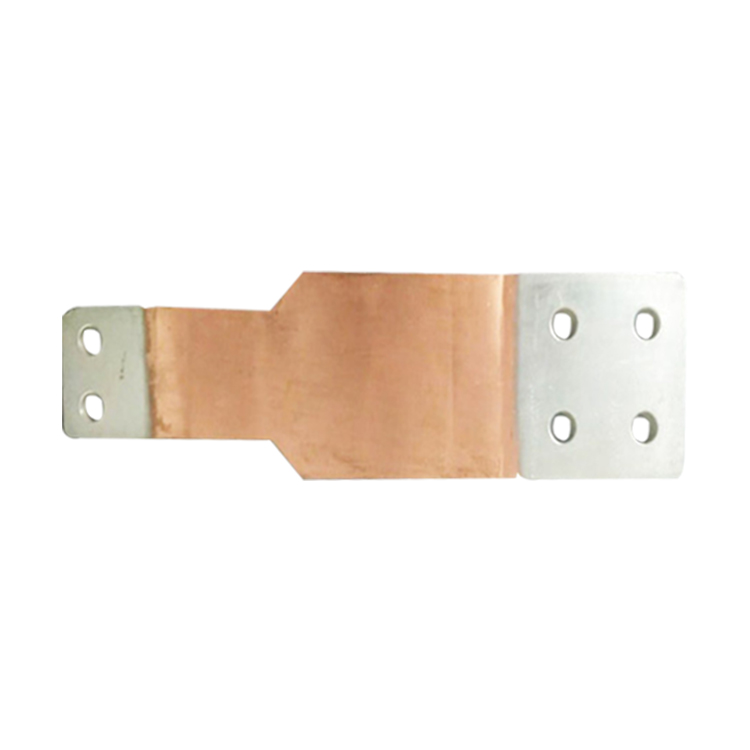

Picture Example:
Lead time:
Quantity(pieces) 1 - 10000 >10000 Est. time (days) 15 To be negotiated
Material Available Copper, Brass, Bronze, Aluminum, Steel, Iron,etc.
Length Range up to 6m
Width Range 10mm - 200mm
Thickness Range 0.15mm - 40mm
Tolerance
+/- 0.1mm
Main Process
Cutting, Punching, Stamping, Bending, Turning, Drilling, CNC Machining, etc.
Capacity
Around 300,000 parts per day
Structure Composition:
1.Conductor:
Insulated flexible busbar conductor use T2 soft state copper belt, the soft state can devide to bare copper and tin plated copper
2.Insulation layer:
Flexible insulating busbar of insulating layer has specialpolyvinyl chloride (PVC) and thermoplastic elastomer (TPE) of two kinds
of materials. The characteristics of TPE with low smoke and no halogen.
Production standards:
Flexible insulating busbar don't have a special standardin the world, The United States borrow UL758 electronic line standards for
production certification,China's enterprises refer to GB/T5023 insulation cable standard and UL758 electronic line standard.
Product features:
1.Easy processing and forming
2.High load flow
3.Easy installation
Application:
Because ofthe excellent characteristic of insulated flexible busbar,it has become the first choice for electrical wiring and g
radually replace the cable in the application of electrical wiring,the hard busbar of non main structure will gradually be
replaced with flexible busbar.
