Filter choke switching common mode choke filter inductor ferrite coil

Price:$0.07/Piece
Min quantity:10000Piece
Quantity:500000Piece

Buy

Essential details

• Model Number:

• UU/UF

• Type:

• Common mode choke

• Place of Origin:

• Jiangsu, China

• Brand Name:

• Liwang

• D/C:

• Lot

• Application:

• Pcb

• Brand:

• Liwang

• Supplier Type:

• Factory

• Cross Reference:

• Customized

• Tolerance:

• J,K,M

• Operating Temperature:

• -40~125

• Rated Power:

• Customized

• Package Type:

• Customized

• Resistance Tolerance:

• Customized

• Temperature Coefficient:

• Customized

• Resistance:

• Customized

• Media Available:

• Customized

• Frequency - Self Resonant:

• 1MHZ~1GHZ

• Features:

• Customized

• Height - Seated (Max):

• Customized

• Function:

• filter

• Inductance:

• Customized, 1mH-500mH

• Q @ Freq:

• 10-200

• Mounting Type:

• Customized

• Package / Case:

• Customized

• Size / Dimension:

• Customized

• Height:

• Customized

• Number of Coils:

• Customized

• Inductance - Connected In Parallel:

• Customized

• Inductance - Connected In Series:

• Customized

• Current Rating - Parallel:

• Customized

• Current Saturation - Parallel:

• Customized

• Current Saturation - Series:

• Customized

• DC Resistance (DCR) - Parallel:

• Customized

• DC Resistance (DCR) - Series:

• Customized

• Shielding:

• Customized

• Material - Core:

• Ferrite

• Current Rating (Amps):

• Customized

• Current - Saturation:

• Customized

• DC Resistance (DCR):

• Customized

• Core Bobbin:

• UU/UF9.8 UU/UF10.5 UU/UF15.7 UU/UF16

• Strucrure:

• Vertical/Horizontal

• Certificate:

• ISO9001 ISO14001 IS/TS16949 ROHS

• Feature:

• High frequency ferrite

• Advantage:

• Factory direct price

• Package:

• Carton or Bulk

Supply Ability

• Supply Ability

• 100000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

Carton

• Port

Shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 10000	>10000
  Est. time (days)	10	To be negotiated

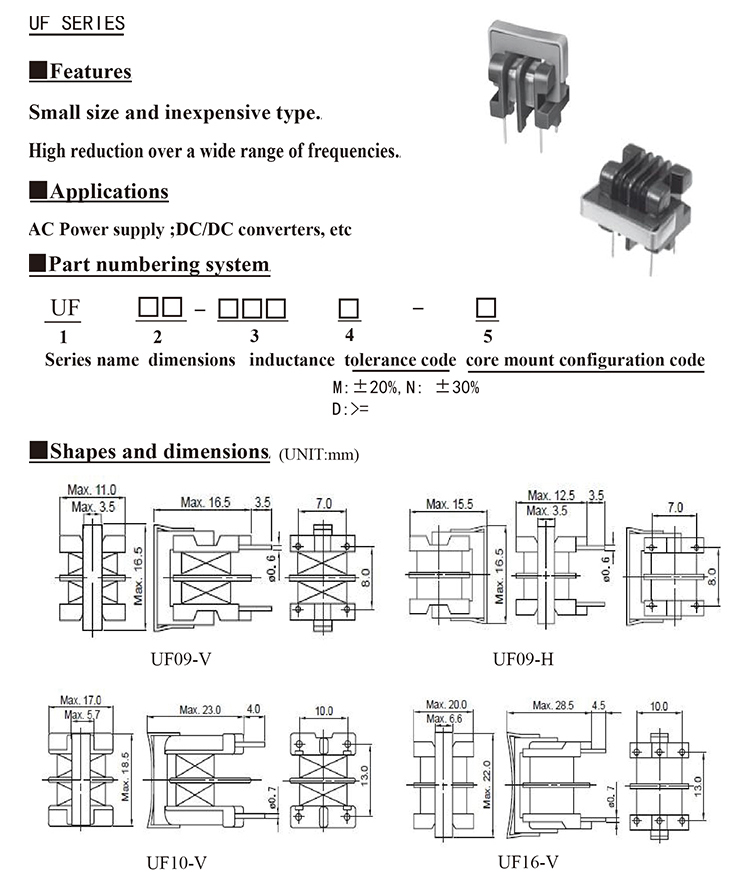

Core Bobbin	UU/UF9.8 UU/UF10.5 UU/UF15.7 UU/UF16
Inductance	1mH-500mH
Strucrure	Vertical/Horizontal
Certificate	ISO9001 ISO14001 IS/TS16949 ROHS

01

High permeability

Wide screen, high impedance, high Q

value,low loss and high efficiency.

       02

       High precision

       Good product consistency, easy

       assembly and high qualification rate.

03

Reduce resonance

There is no need to bond monomer parts,

and there is no high-frequency resonance caused by poor bonding.



       04

       Good stability

       The product is not limited by the size of

       iron core, small volume and diversified

       appearance; Good temperature stability.
