Overview
Essential details
Place of Origin:
Shanghai, China
Brand Name:
Acrel
Model Number:
PZ72L-DE
Display Type:
Digital Only
Measuring Energy Range:
0-999999
Accuracy Class:
1 Class
Output Voltage:
0-1000 V
Operating Temperature:
-25℃~+55℃

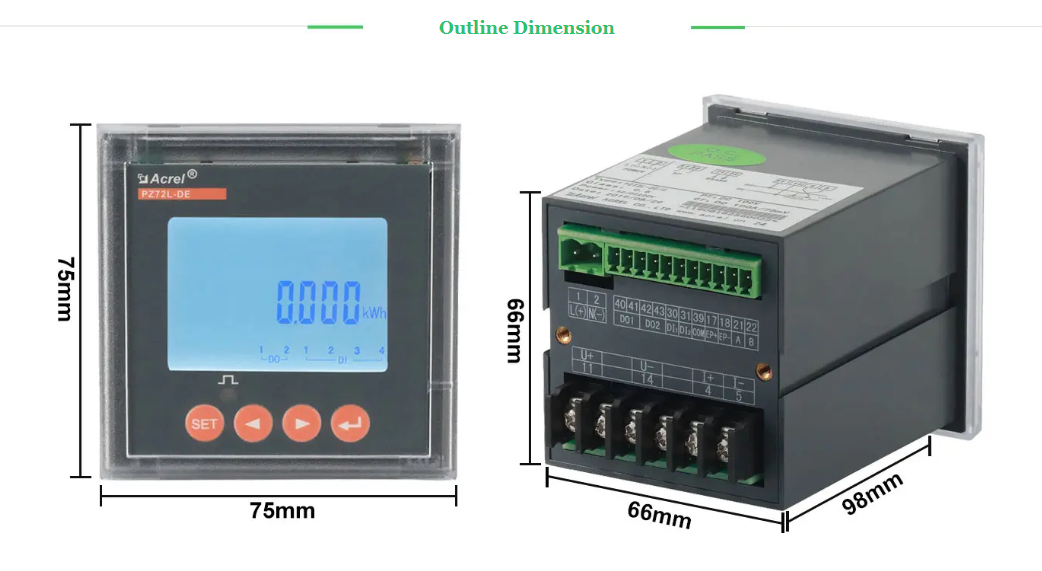

Dimensions:
75*75*98mm

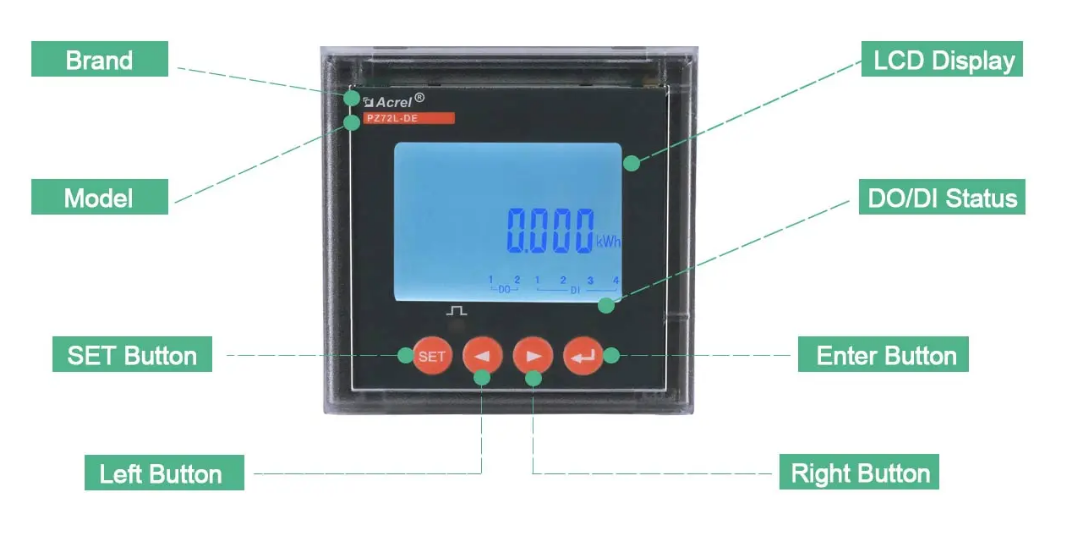

Display:
LCD display

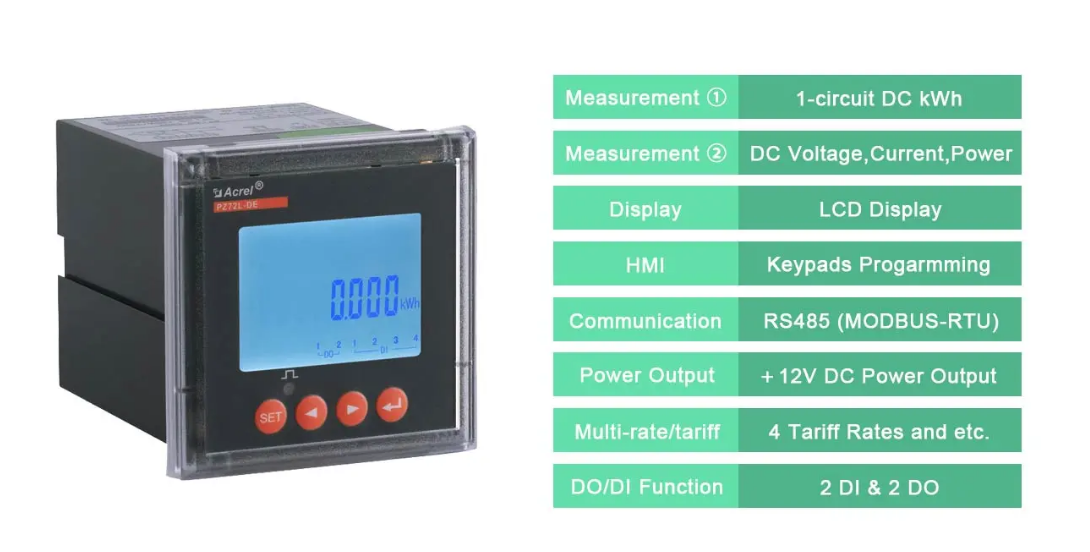

Communication:
RS485(Modbus-RTU) DL/T 645-2007
Voltage:
DC 0-1000V
Type:
Panel Mounting Energy Meter
Certificate:
CE
Application:

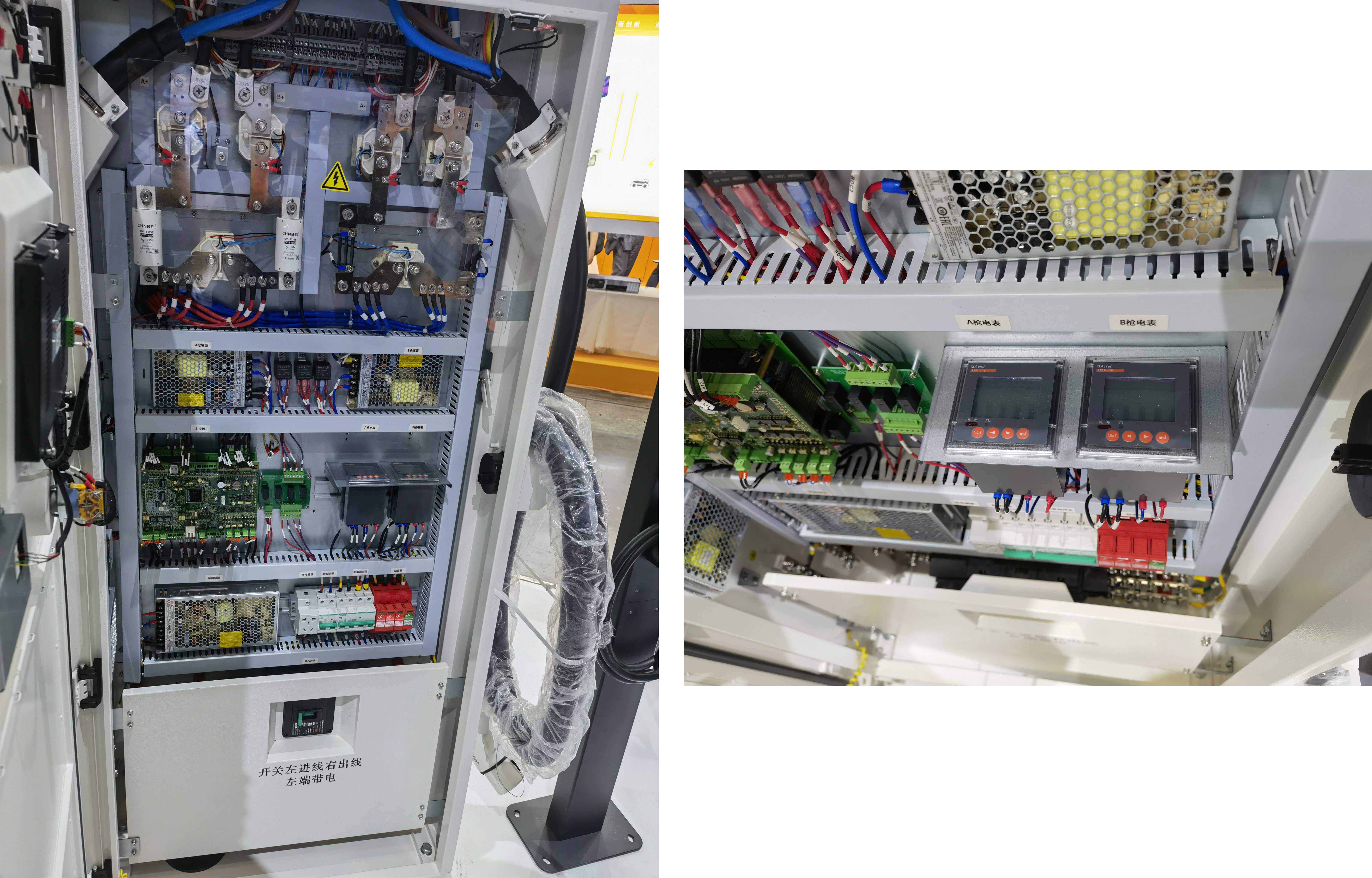

Ev Charging
Accuracy:
1
Option:

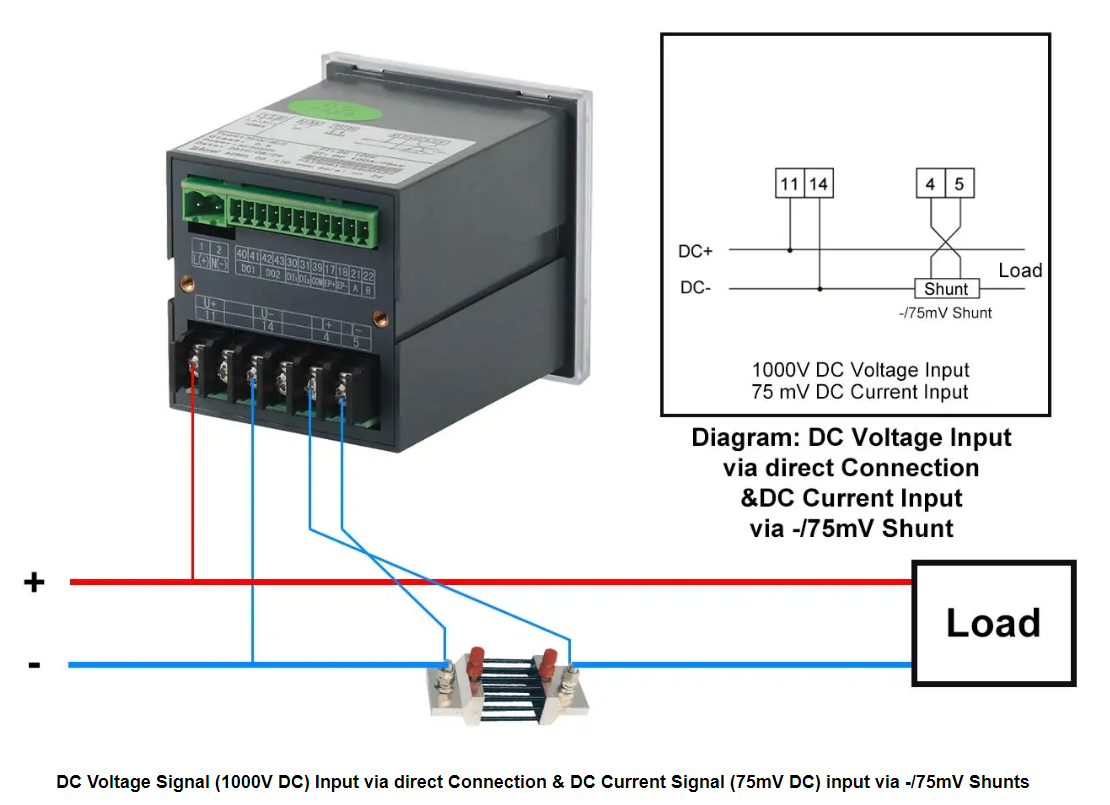

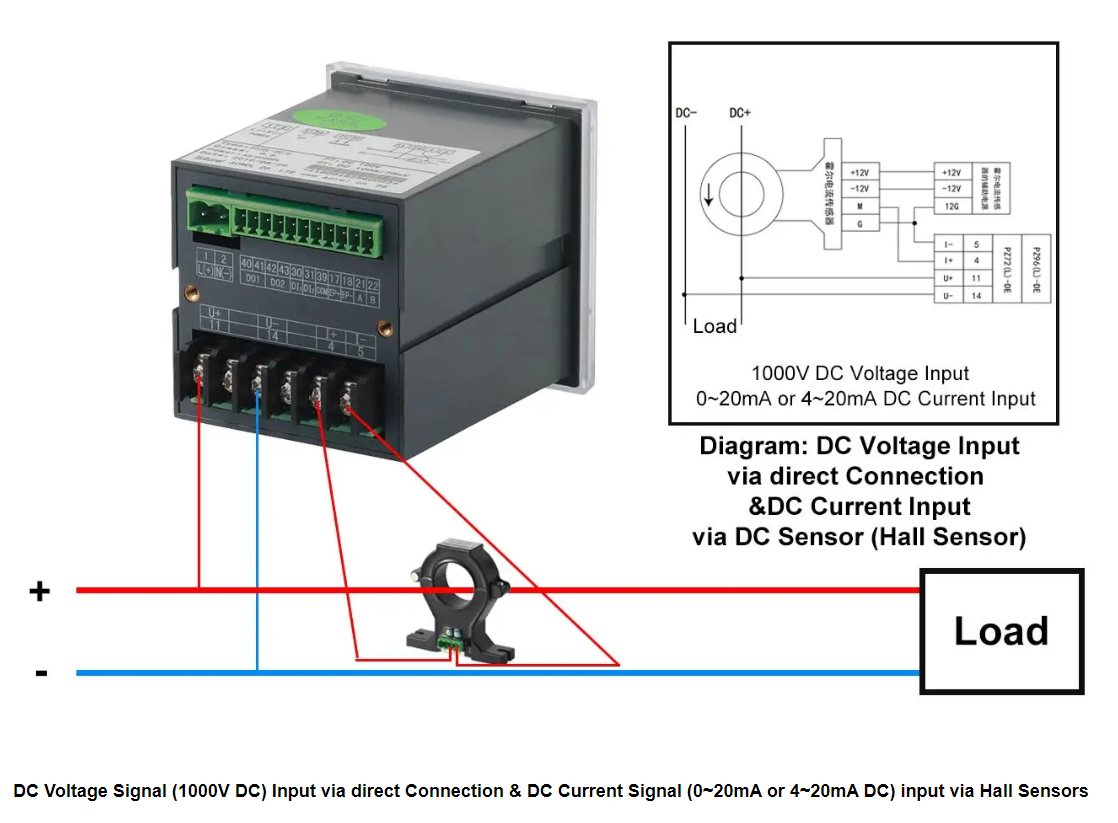

hall effect current sensor/shunt
Packaging & delivery
Selling Units:
Single item
Single package size:
18X16X14 cm
Single gross weight:
1.000 kg
Package Type:
carton +plastic plate
Picture Example:
Lead time:
Quantity(pieces) 1 - 1000 >1000 Lead time (days) 3 To be negotiated
Product Discription
