Overview

Essential details

• Place of Origin:

• China

• Brand Name:

• Acrel

• Model Number:

• ADW210-4S-D24

• Display Type:

• Digital Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 9999999.9kWh

• Accuracy Class:

• Class 1

• Output Voltage:

• 380V

• Operating Temperature:

• -20℃~+55℃

• Dimensions:

• 72*97.7*36mm

• Current:

• 400A

• Product name:

• 3 Phase Energy Meter

• Type:

• Din Rail Energy Meter

• Communication:

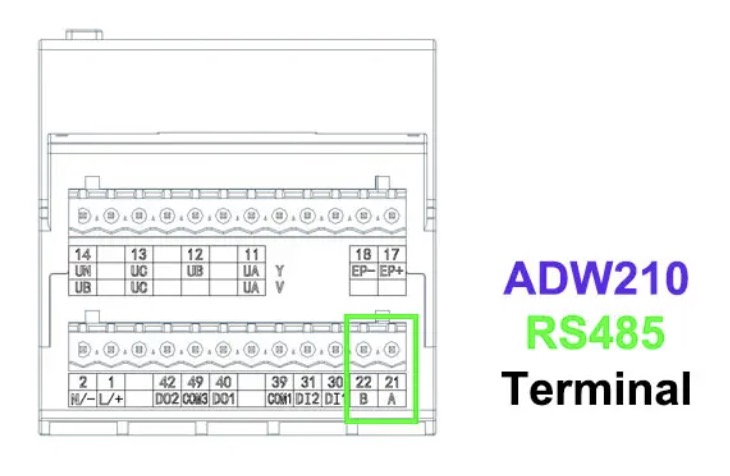

• RS485

• Frequency:

• 45-65Hz

• Certificate:

• IEC

• OEM:

• Allowed

• Function:

• Measurement

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 10X10X10 cm

• Single gross weight:

• 1.000 kg

• Package Type:

• carton +Wooden case

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	5	To be negotiated

Video Description

00:00

02:10

Product Discription

ADW 200 Series

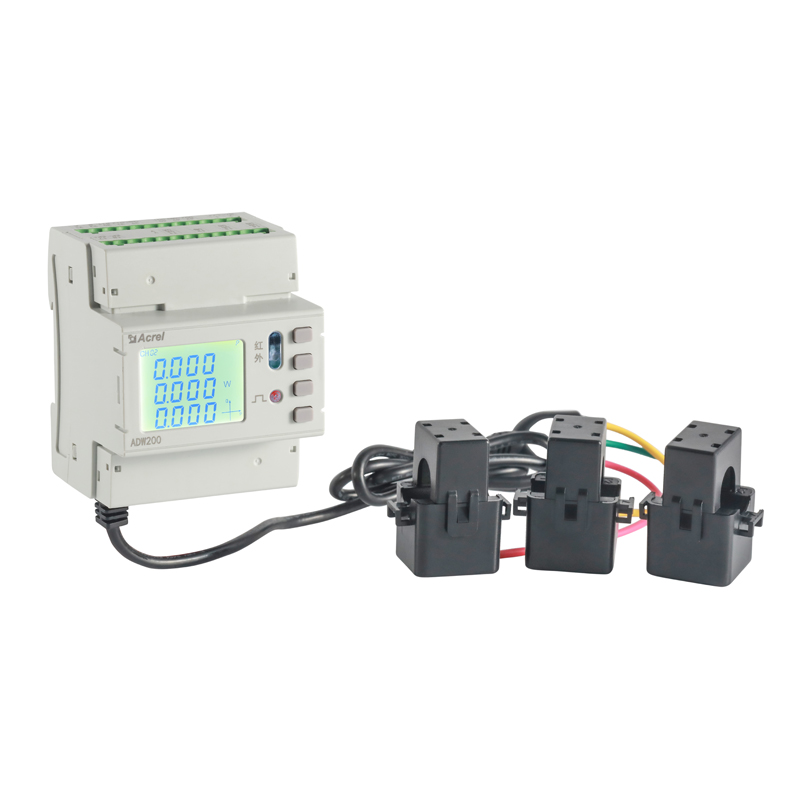

Acrel ADW210 serial energy  meter is a din rail type multi-loop power meter which can monitor 12 output loops, whitch is convenient for counting the power consumption of each loop. It comes with own special split type CTs with RJ45 port to easier install. Two year warranty with CE, IEC certificate.

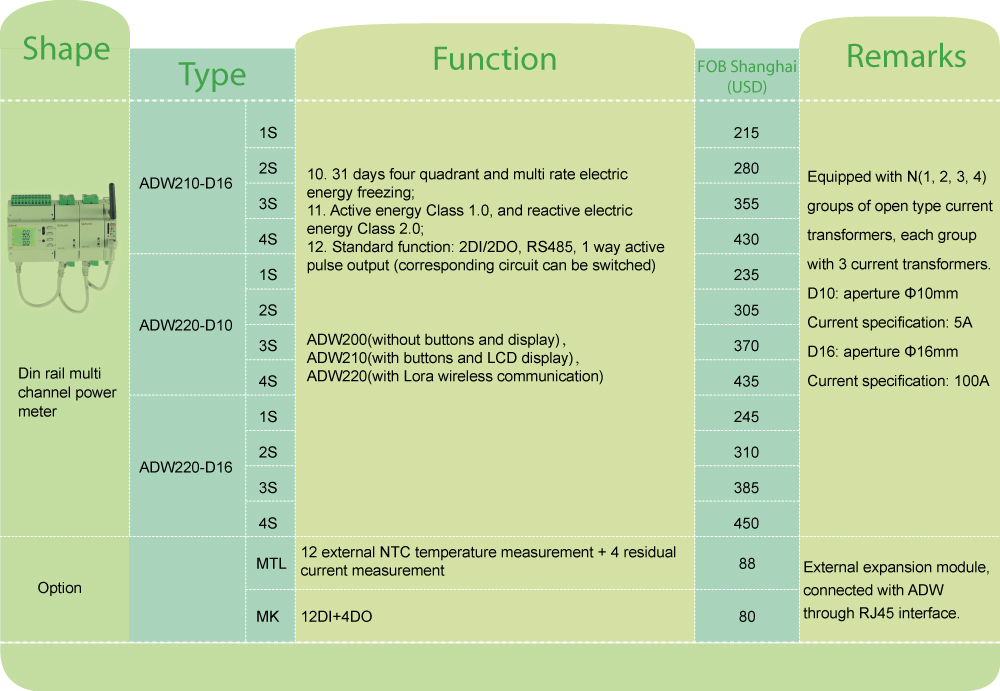

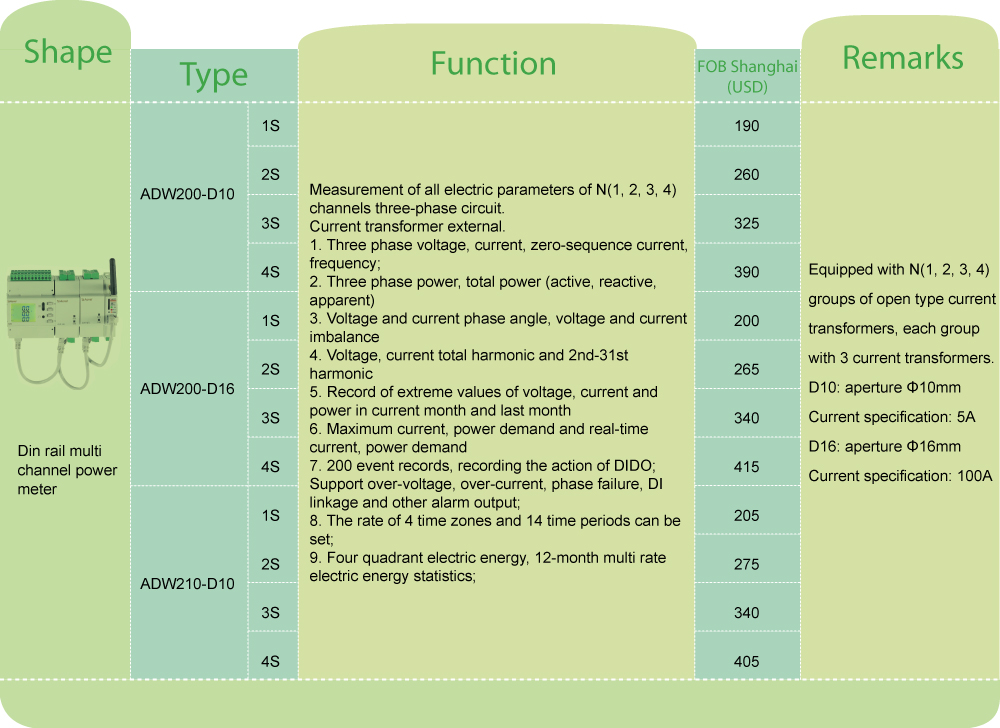

Product Paramenters

Dimensions

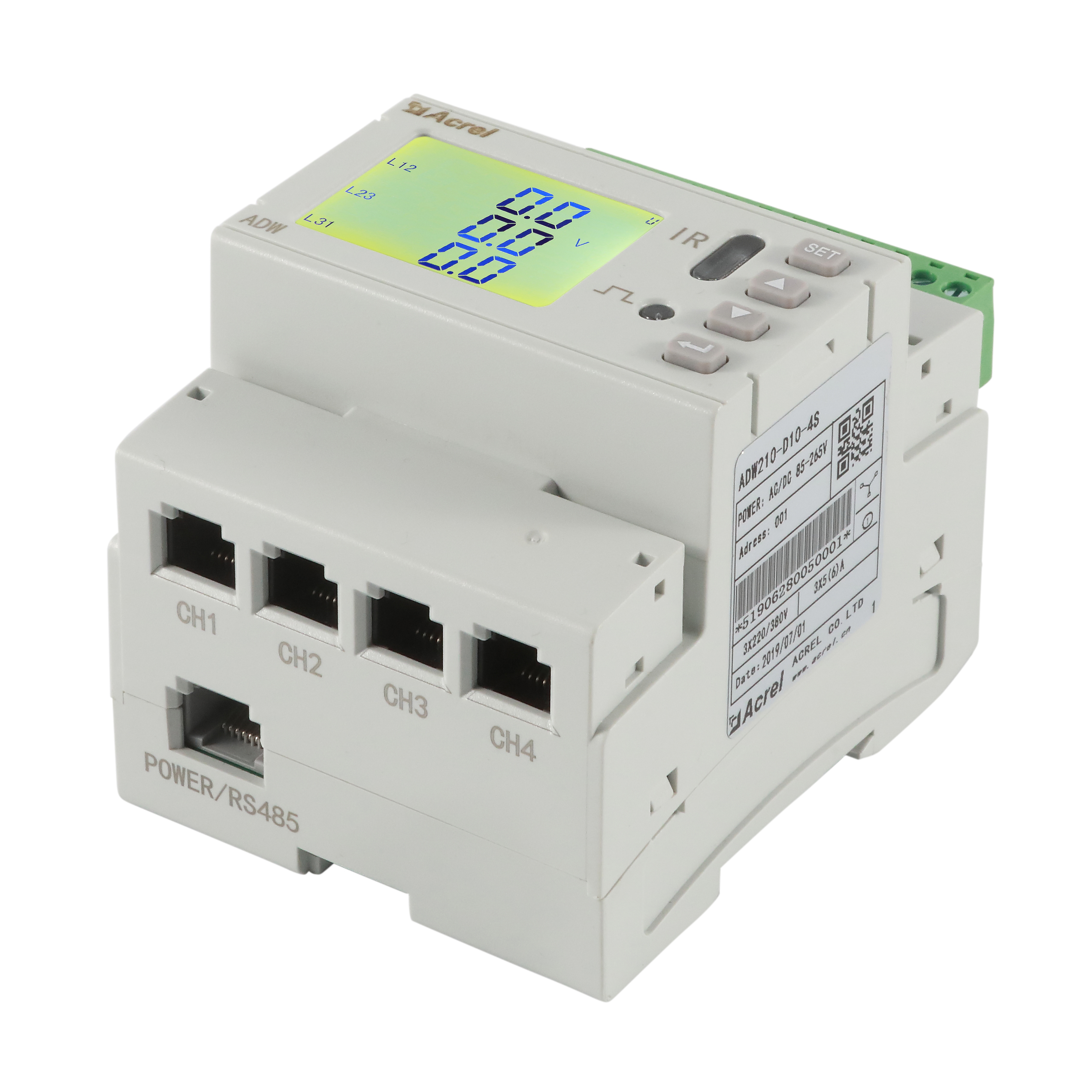

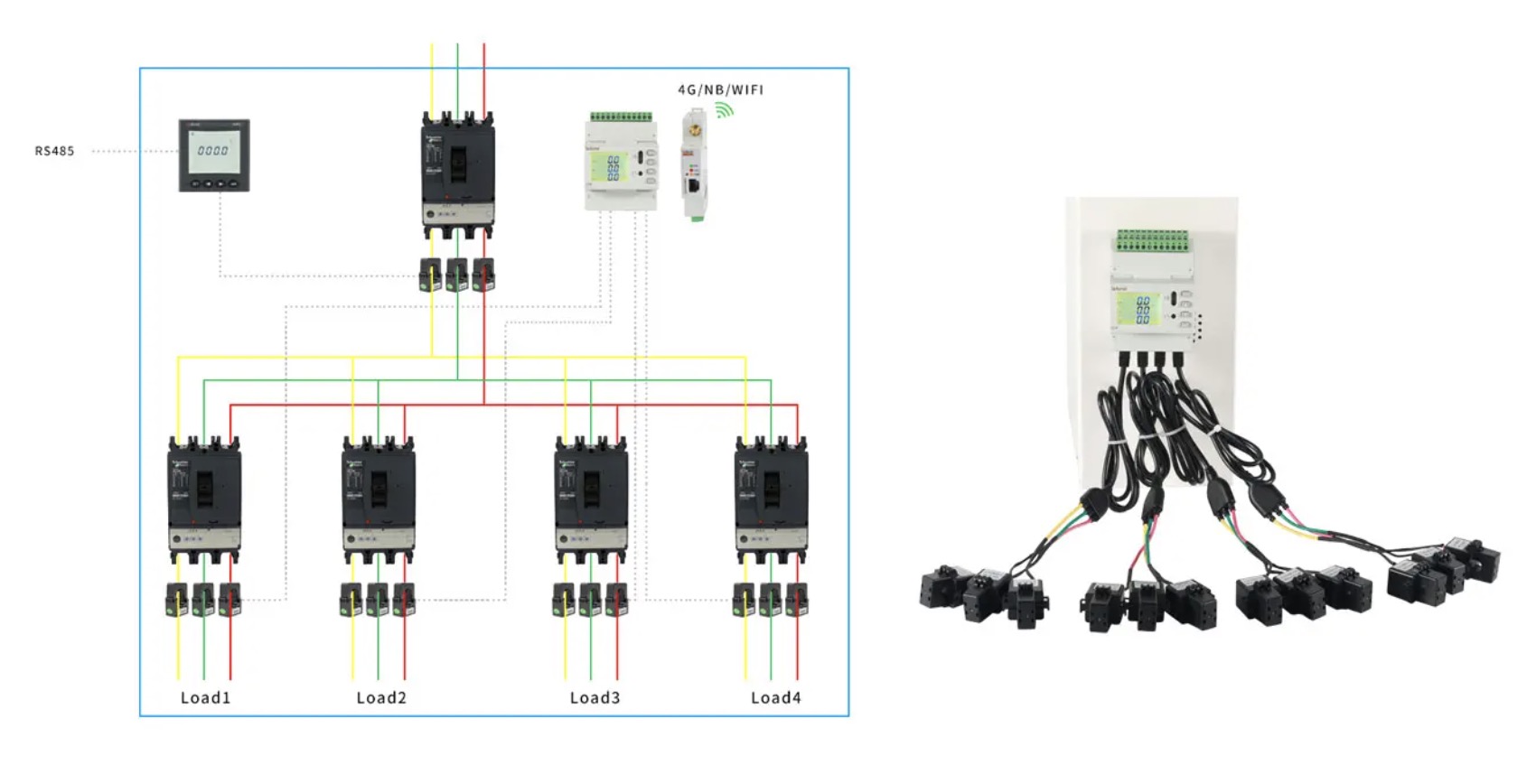

Max to monitor 4 channels three phase, Acrel ADW210-4S-Dxx will come with 12 current transformers with easier RJ45 port to install and will make sure the whole accuracy will be Class 1.

Current transformer ratio can be choose as D10-5A, D16-100A, D24-400A, D36-600A.

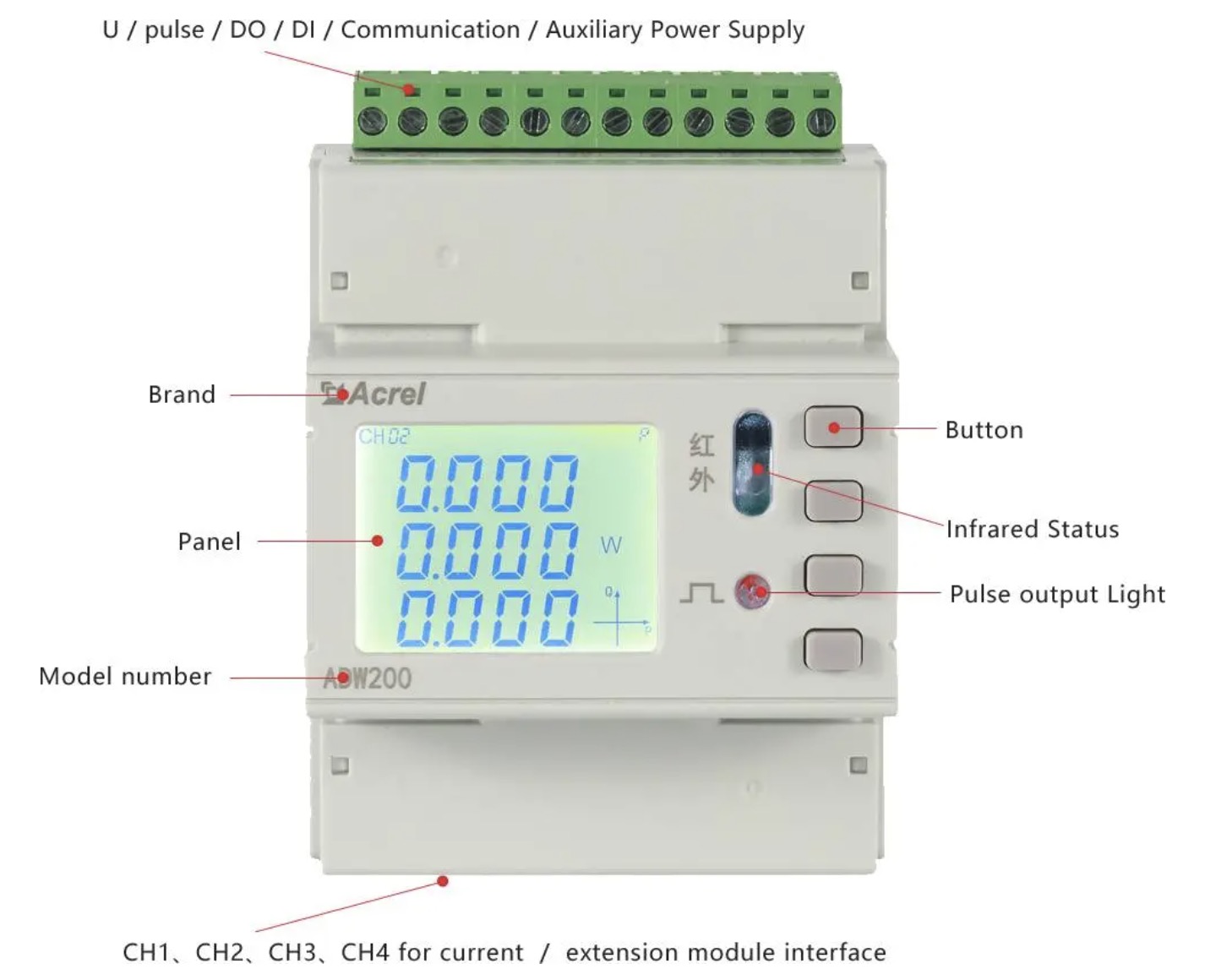

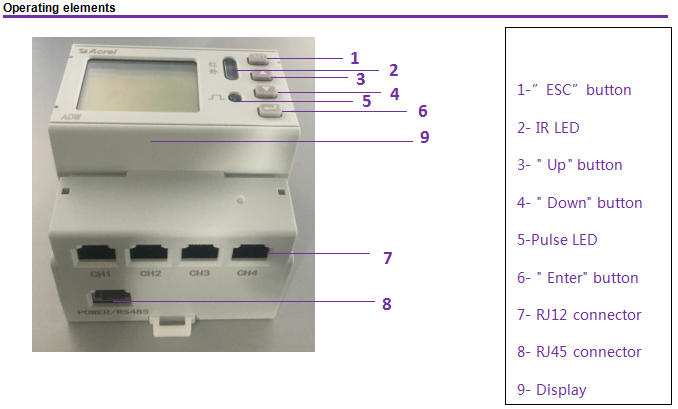

Opreating Elements

Certificates
