Acrel ADW300W/C three phase energy meter with 3 splict core CTs 100A , dia16mm , RS485 Modbus, (wifi

Hits:	4577
Price:	122.00Dollar/Piece
Min quantity:	100 Piece
Quantity:	10000 Piece
Deliver:	In days
Expiry:	Long-term
Update date	2022-10-21 10:02

Detail

Overview

Essential details

Place of Origin:
Shanghai, China

Brand Name:
acrel

Model Number:
ADW300W/C

Display Type:
Digital Only

Phase:
Three Phase

Measuring Energy Range:
0-99999KWH

Accuracy Class:
1

Output Voltage:
380V

Operating Temperature:
-20℃~+55℃

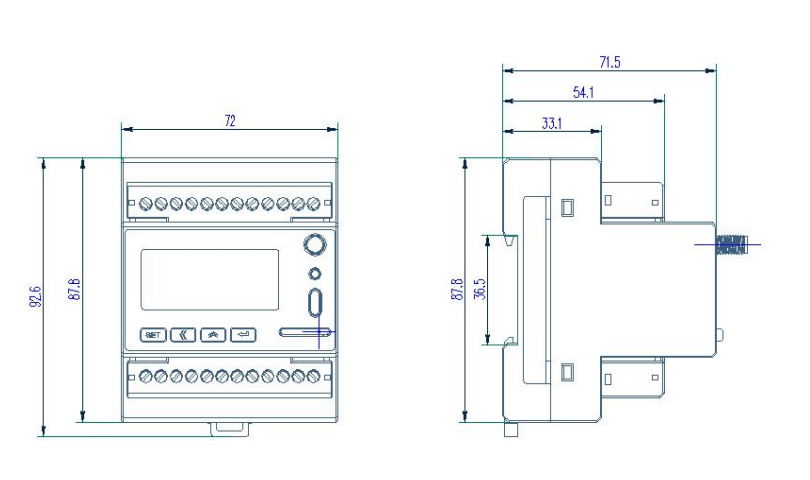

Dimensions:
72*87.8*71.5mm

Current Spec(A):
100A

Protocol:
modbus

Accuracy:
0.5S

Function:
Measurement

Type:
Din Rail Energy Meter

Packaging & delivery

Selling Units:
Single item

Single package size:
20X20X20 cm

Single gross weight:
2.000 kg

Package Type:
```
carton +Wooden case
```

Picture Example:

Lead time:
Quantity(pieces) 1 - 1000 >1000
Lead time (days) 5 To be negotiated

Product Discription

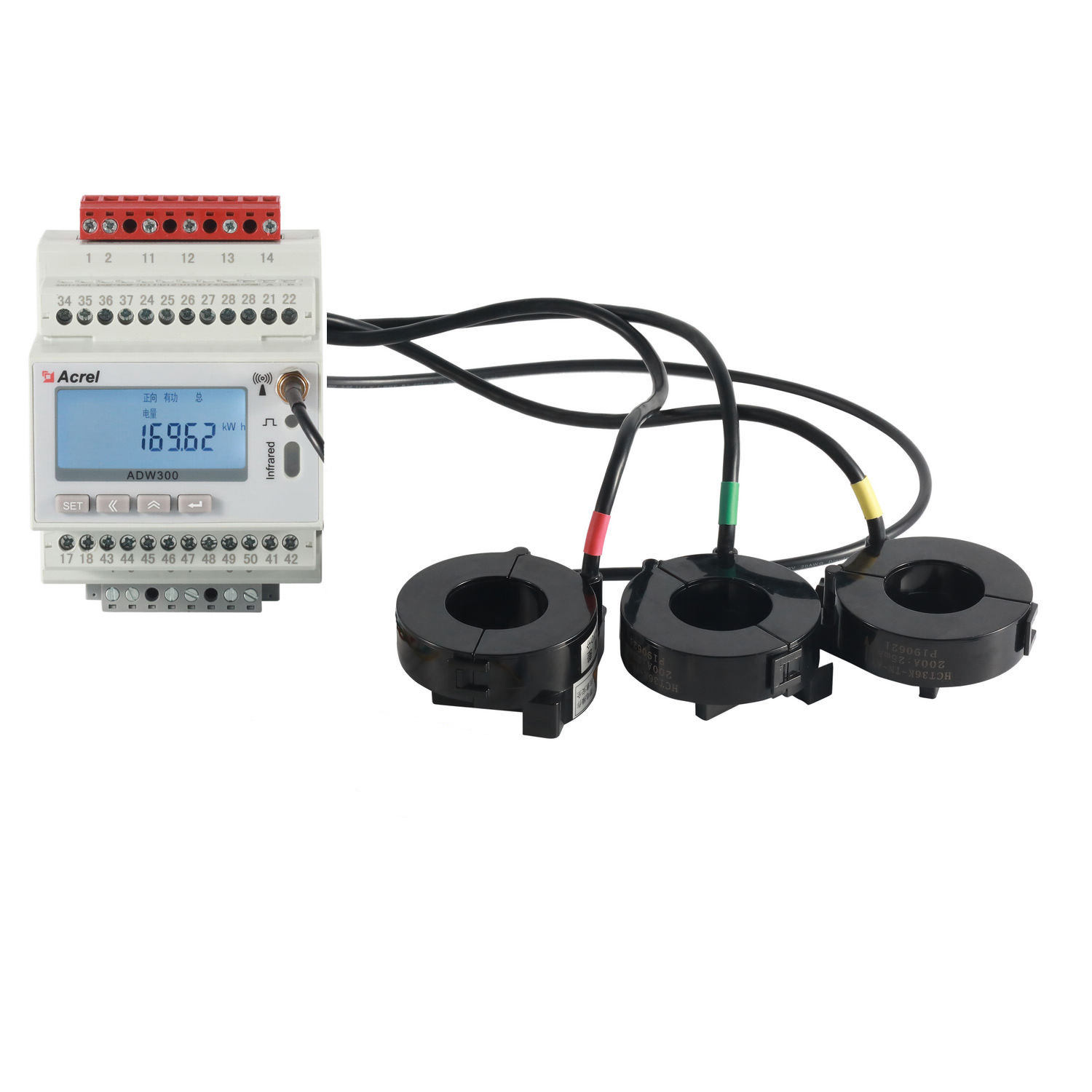

ADW300 Energy Meter

ADW300 energy meter is mainly used to measure three phase current ,voltage,power,kwh, harmonic in low-voltage network(<690v).

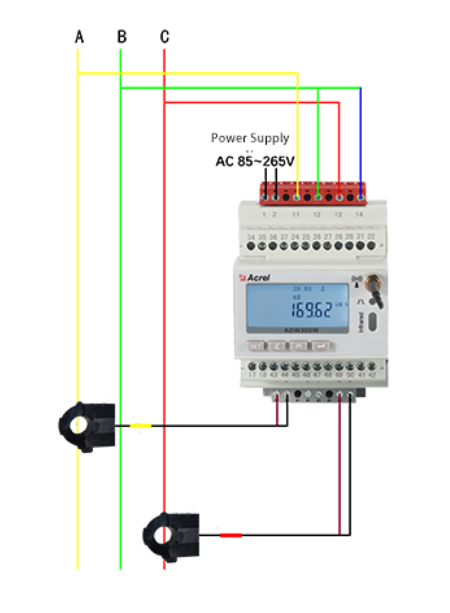

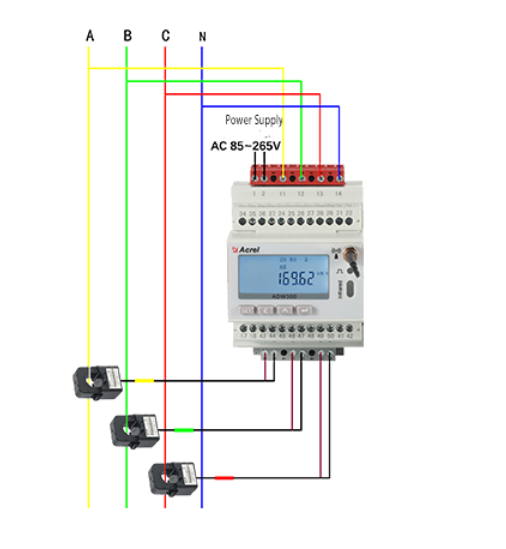

It is standard with 3 split core current transformers, 100A /400A/600A optional.

It has various communication methods. RS485-Modbus / 4G module in-built / WIFI module in-built/ Lora module in-built optional.

Function	Functional description
Display mode	LCD (Field form)
Electric energy metering	Active power metering (positive and reverse); four quadrant reactive power
Electricity measurement	Voltage, current, power factor, frequency, active power, reactive power, apparent power
Harmonic function	Total harmonic content and fractional harmonic content (2-31 times)
Pulse output	Active Power Pulse Output
Three-phase unbalance	Voltage and current unbalance
Temperature measurement function	A, B, C, N four-way temperature measurement (Optional T)
Tiered pricing	Two sets of time tables, a year can be divided into four time zones, each set of time table can set 12 days, four rates (F1, F2, F3, F4 namely Sharp,peak,flat and valley).
DI /DO	4DI/2DO (Optional K)
Residual electricity	1-way Residual Electricity Measurement
LED instruction	Pulse and other indication

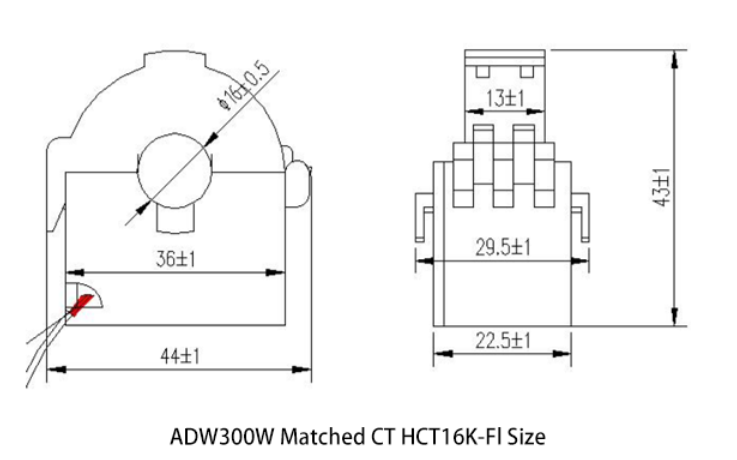

External CT	External open type CT (Optional W)
Communication	Infrared Communication
	RS485 Interface (Optional C)
	470MHZ Wireless Transmission (Optional LR)
	GPRS Wireless Communication (Optional 2G)
	NB-IOT Wireless Communication (Optional NB)
	WIFI Wireless Communication (Optional WIFI)
Power Cut Upload	Save the report during the power cut, upload the data after powering on (Optional U)
Voltage input	Rated voltage	3×220/380V,3×380V,3×57.7/100V,3×100V
	Reference frequency	50Hz
	Power consumption	<10VA or 2W(A),<0.5VA(B,C)
Current input	Input current	3×1(6)A , 3×20(100)A(ADW300W)
	Start current	4‰Ib(1class)
	Power consumption	<2VA
Measurement performance	Standard	GB/T17215.321-2008,GB/T17215.322-2008
	Active energy accuracy	0.5S class
	Temperature Accuracy	±2℃
pulse	pulse width	80±20ms
	Impulse constant	6400imp/kWh
Communication	wireless	Transmission on 470MHz and maximum distance in open space is 1km
	Infrared communication	The constant baud rate is 1200
	Interface	RS485(A,B)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU,DL/T 645-07
