Overview

Essential details

• Model Number:

• ACTDS-DV/I

• Place of Origin:

• Shanghai, China

• Brand Name:

• ACREL

• Usage:

• Magnetic Sensor

• Theory:

• hall effect

• Brand:

• hall voltage tranformer

• Coil Structure:

• Toroidal

• working temperature:

• -10℃-+55℃

• Rated voltage:

• DC100V-1500V

• Analog output:

• 4-20mA or 5V

• Power supply:

• 12V, 15V, 24V

• Accuracy Class:

• Class 0.5

• Response time:

• 30ms or less

• DIN-Rail Mounting:

• 35mm din rail

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 18X17X10 cm

• Single gross weight:

• 0.150 kg

• Package Type:

• Shock bubble film.
  Packed by cartcase.
  2 pieces meter/per carton case.

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	6	To be negotiated

Hall Sensor

Hall Sensor

Photoelectric isolation dc voltage sensor/transducer, measure range dc50V-4000V, output mA or 5V

      ACTDS/AHVS series DC voltage sensors are the measuring module that converts the measured DC voltage into the proportional DC current or DC voltage signal according to the optical isolation theory.The input side is highly insulated from the output side. They feature the high accuracy, linearity and integration, small size, simple structure, long-term stability and adaptability to various working conditions. They are widely used for system control and detection of electrical equipment in the power, petroleum, mine, chemical, railway, communication, building automation sectors.

 Measurement of DC voltage:
* Quick response
* Large overload capacity
* High accuracy
* DIN rail mounting
* 3.5kv insulation between the input side and the output side

Wholesale price: Please contact us in detail. We can offer you the best price.

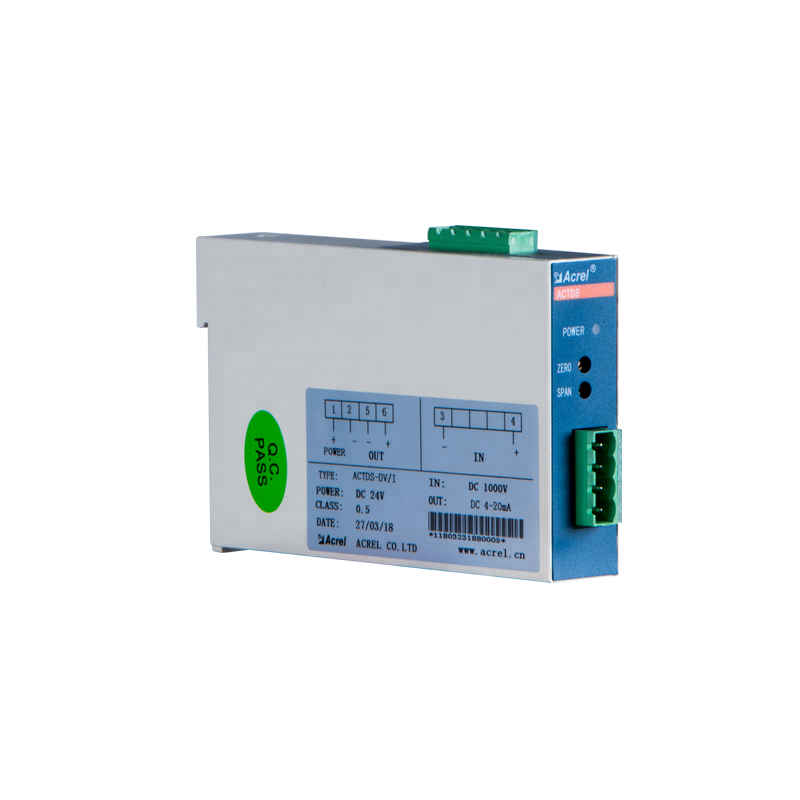

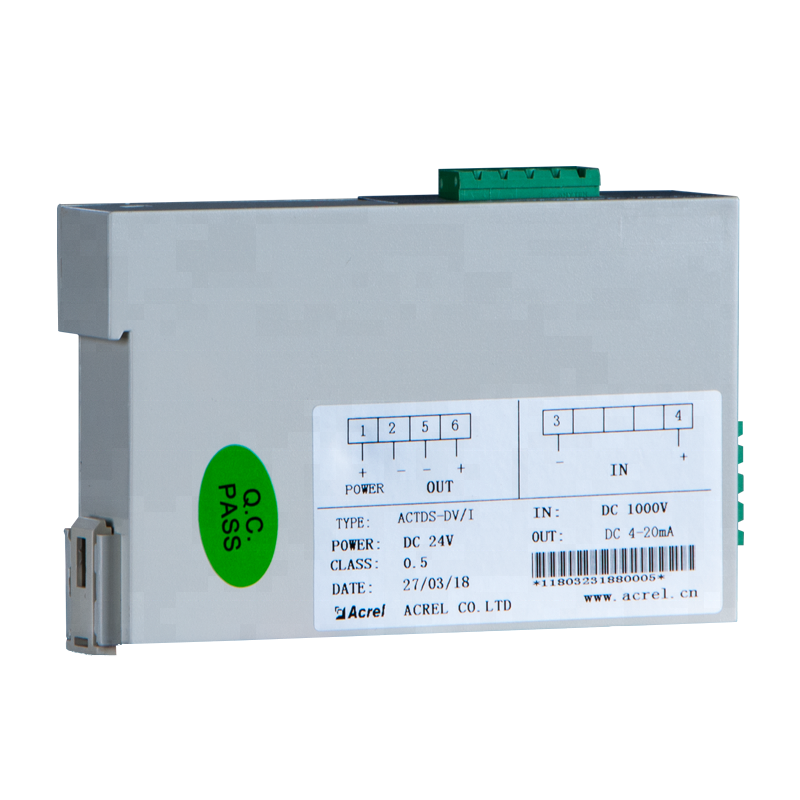

ACTDS-DV

ACTDS-DV

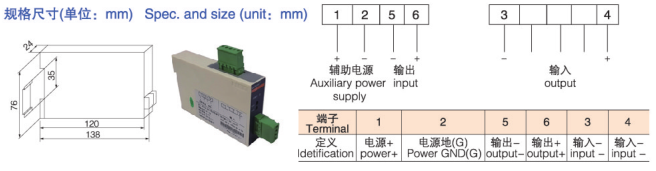

Size

Size
