Open Loop Current Transformer with Large Current Ratio for Retrofit Projects Acrel AKH-0.66K K-80*80
Hits: 4579
Price: 49.60Dollar/Piece
Min quantity: 100 Piece
Quantity: 10000 Piece
Deliver: In days
Expiry: Long-term
Update date 2022-10-21 09:58

Detail

Overview

Essential details

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • ACREL

  • Model Number:

  • AKH-0.66K K-80*80 450A/5A

  • Usage:

  • Current

  • Phase:

  • NONE

  • Coil Structure:

  • separate core

  • Coil Number:

  • NONE

  • Warranty:

  • 2 Years

  • Color:

  • White

  • Certification:

  • CE

  • MOQ:

  • 1PCS

  • OEM:

  • Avaliable

Packaging & delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 14.4X5.9X16 cm

  • Single gross weight:

  • 2.500 kg

  • Package Type:

  • carton
  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 30>30
    Lead time (days)15To be negotiated

Product Discription

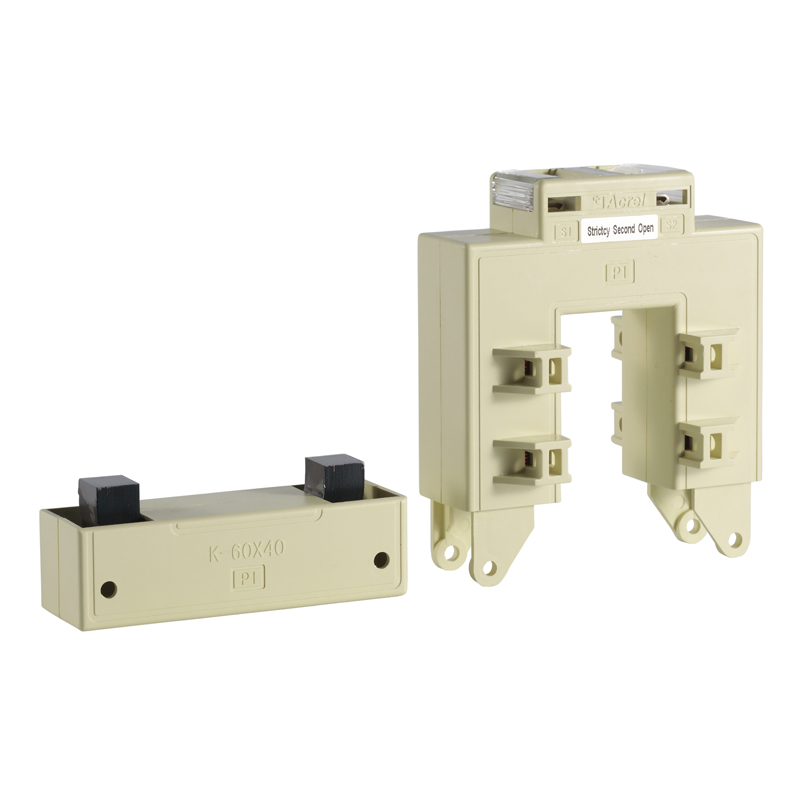

Acrel Split Core Open Loop Current Transformer with CE Certificate

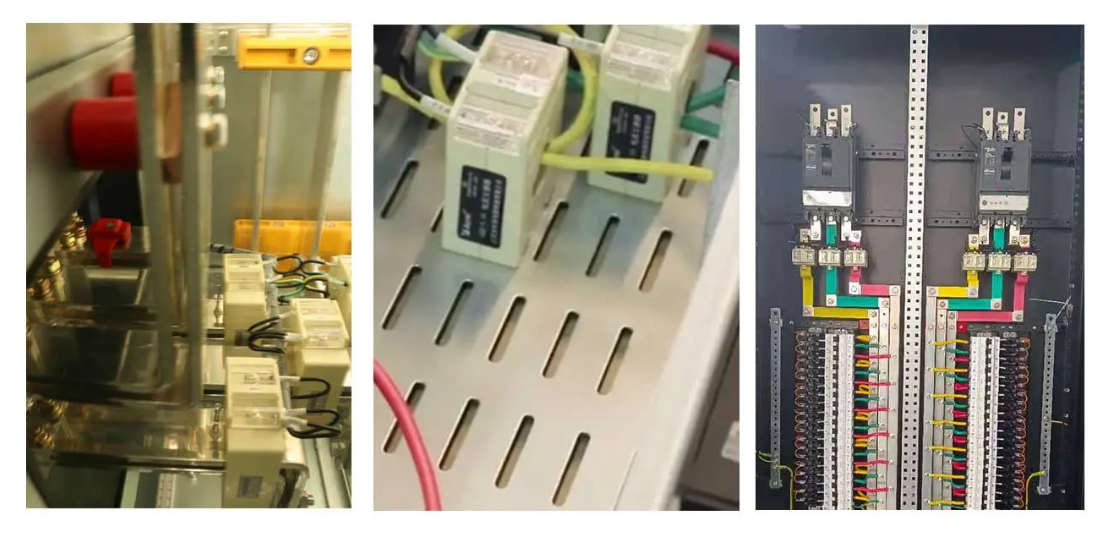

AKH-0.66/K series is nice and the installation and wiring are convenient. AKH-0.66/K series split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc.They save the manpower, material resources and financial resources and improve the efficiency of users.

Product Paramenters

Functions and parameters of split core open loop current transformers,
*Accuracy:0.5

*Easy installation
*Rated frequency: 50/60Hz
*Rated primary current: Ranging up to 6000A

Model

current ration(A)

Accuracy

Rated load(VA)

Max cable diameter(mm)

Unit price FOB Shanghai in USD




AKH-0.66/K-30×20

20-75/1A

1

0.2

30*20

36.2


100-150/5(1)A

1

1


200/5(1)A

1

1.5


250-300/5(1)A

0.5

1.5


350-400/5(1)A

0.5

2.5


AKH-0.66/K-60×40

250-300/5(1)A

1

1.5

60*40

55


350-450/5(1)A

0.5

1.5


500-800/5(1)A

0.5

2.5


1000-1250/5(1)A

0.5

5


1500-2000/5(1)A

0.5

10


AKH-0.66/K-80×40

300/5(1)A

1

1.5

80*40

63


350-450/5(1)A

0.5

2.5


500-800/5(1)A

0.5

5


1000-2000/5(1)A

0.5

10


2500-3000/5(1)A

0.2

10


AKH-0.66/K-80×50

250-300/5(1)A

1

1.5

80*50

56.7


400-450/5(1)A

0.5

1.5


500-800/5(1)A

0.5

2.5


1000/5(1)A

0.5

5


AKH-0.66/K-80×80

250-300/5(1)A

1

1.5

80*80

70.8


400-450/5(1)A

0.5

1.5


500-800/5(1)A

0.5

2.5


1000/5(1)A

0.5

5


AKH-0.66/K-100×40

1000-2000/5(1)A

0.5

10

100*40

102


2500-3000/5(1)A

0.2

10


4000-5000/5(1)A

0.2

15


AKH-0.66/K-120×60

400-450/5(1)A

0.5

2.5

120*60

110


500-800/5(1)A

0.5

5


1000-2000/5(1)A

0.5

10


2500-5000/5(1)A

0.2

10


AKH-0.66/K-120×80

500-800/5(1)A

0.5

2.5

120*80

78.7


1000-1200/5(1)A

0.5

5


1250-1500/5(1)A

0.5

7.5


AKH-0.66/K-130×40

1000-2000/5(1)A

0.5

10

130*40

110


2500-5000/5(1)A

0.2

10


AKH-0.66/K-130×60

1000-2000/5(1)A

0.5

10

130*60

157


2500-6000/5(1)A

0.2

15


AKH-0.66/K-140×60

1000-2000/5(1)A

0.5

10

140*60

126


2500-3000/5(1)A

0.2

10


4000-5000/5(1)A

0.2

15


AKH-0.66/K-160×80

1000-2000/5(1)A

0.5

10

160*80

141.7


2500-3000/5(1)A

0.2

10


4000-5000/5(1)A

0.2

15


AKH-0.66/K-200×80

1000-2000/5(1)A

0.5

10

200*80

346


2500-3000/5(1)A

0.2

10


4000-5000/5(1)A

0.2

15


Ask Us For more Models and Current Ration

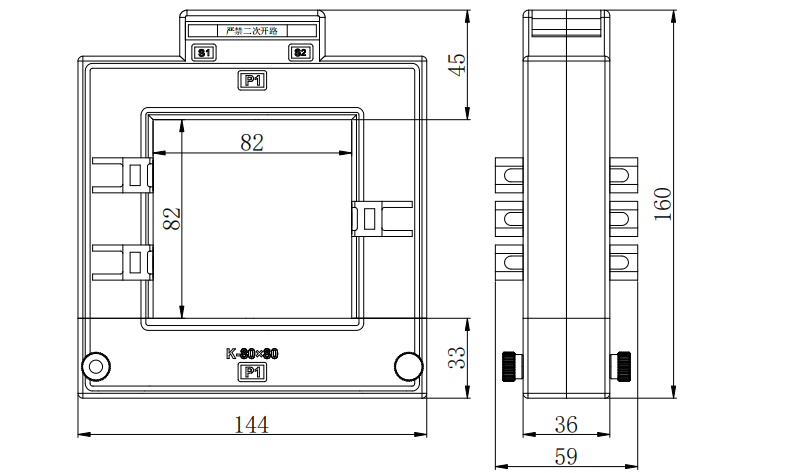

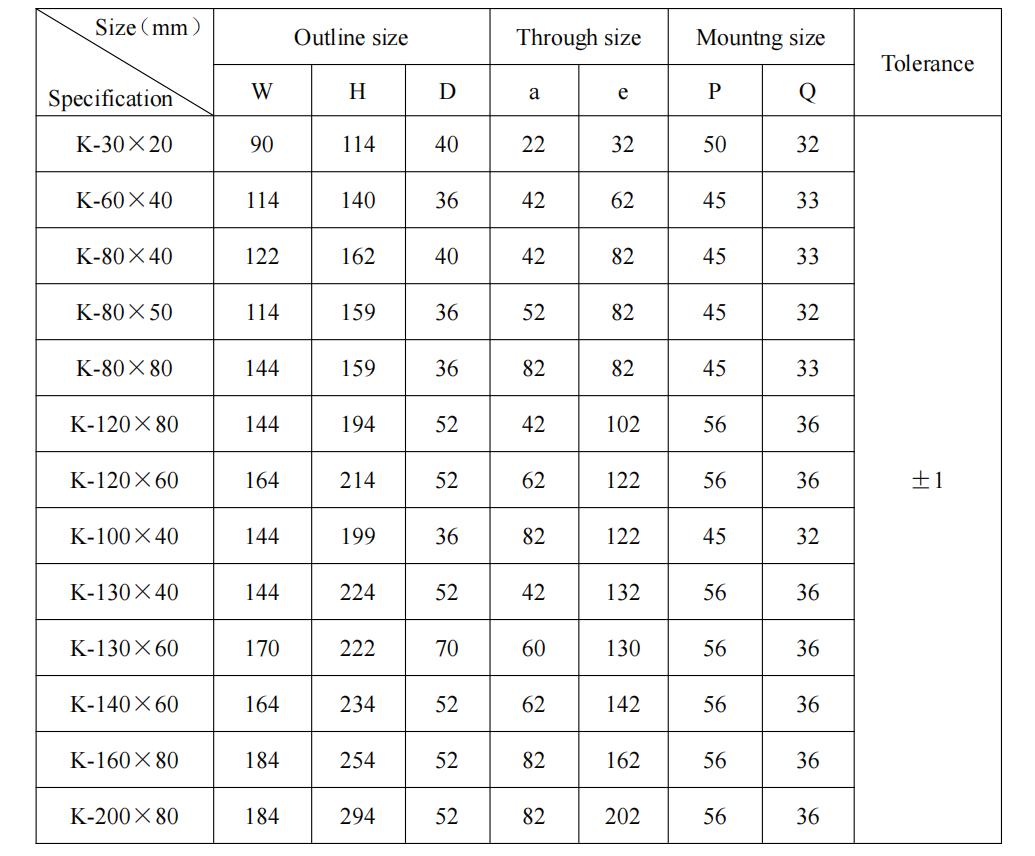

Dimensions
