Home > Sell > ACREL BD-4E/4M Multi-electrical Parameters Digital Transmitter 3 Phase 4 Wire with Maximum 4 Analog

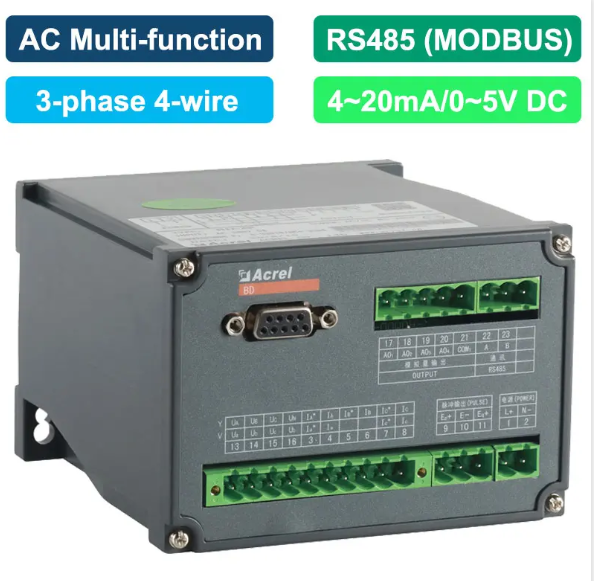

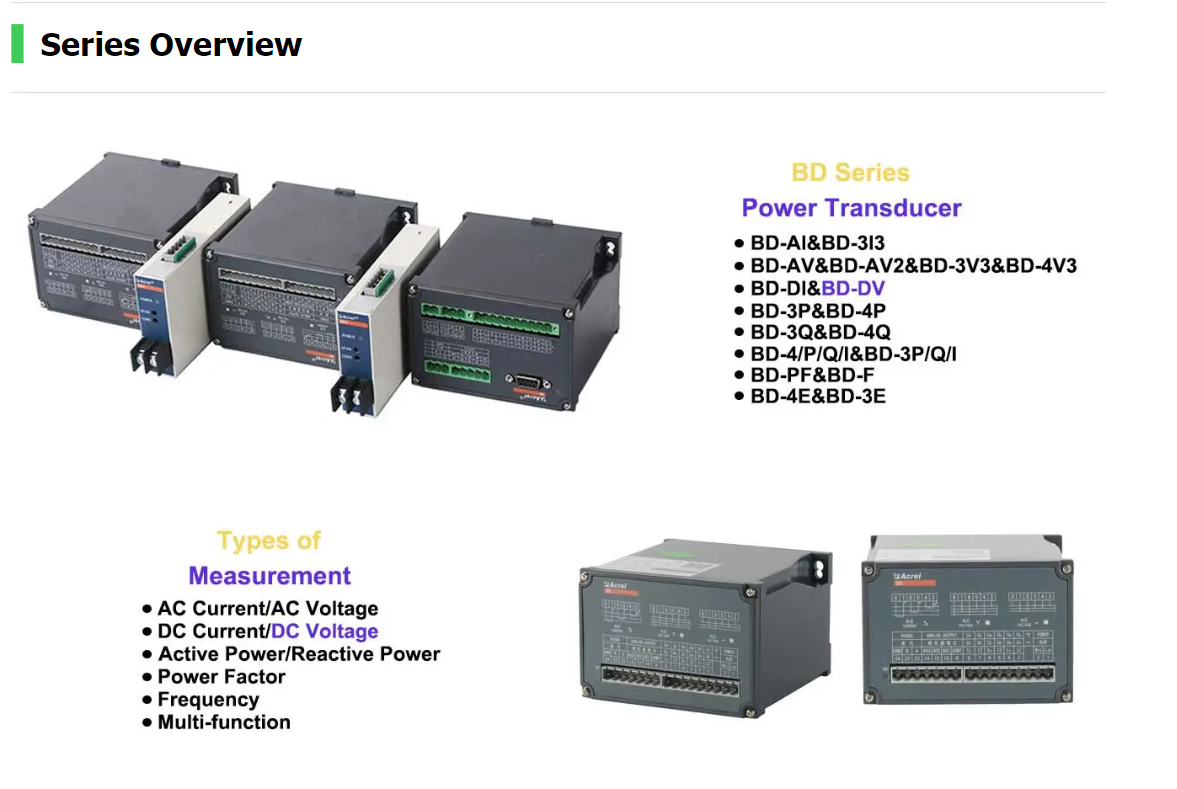

ACREL BD-4E/4M Multi-electrical Parameters Digital Transmitter 3 Phase 4 Wire with Maximum 4 Analog
Hits: 5488
Price: 178.00Dollar/Piece
Min quantity: 10 Piece
Quantity: 1000 Piece
Deliver: In days
Expiry: Long-term
Update date 2022-10-21 09:56

Detail

Overview

Essential details

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • ACREL

  • Model Number:

  • BD-4E/4M

  • Warranty:

  • 2 years

  • Type:

  • power transducer

  • Certification:

  • None

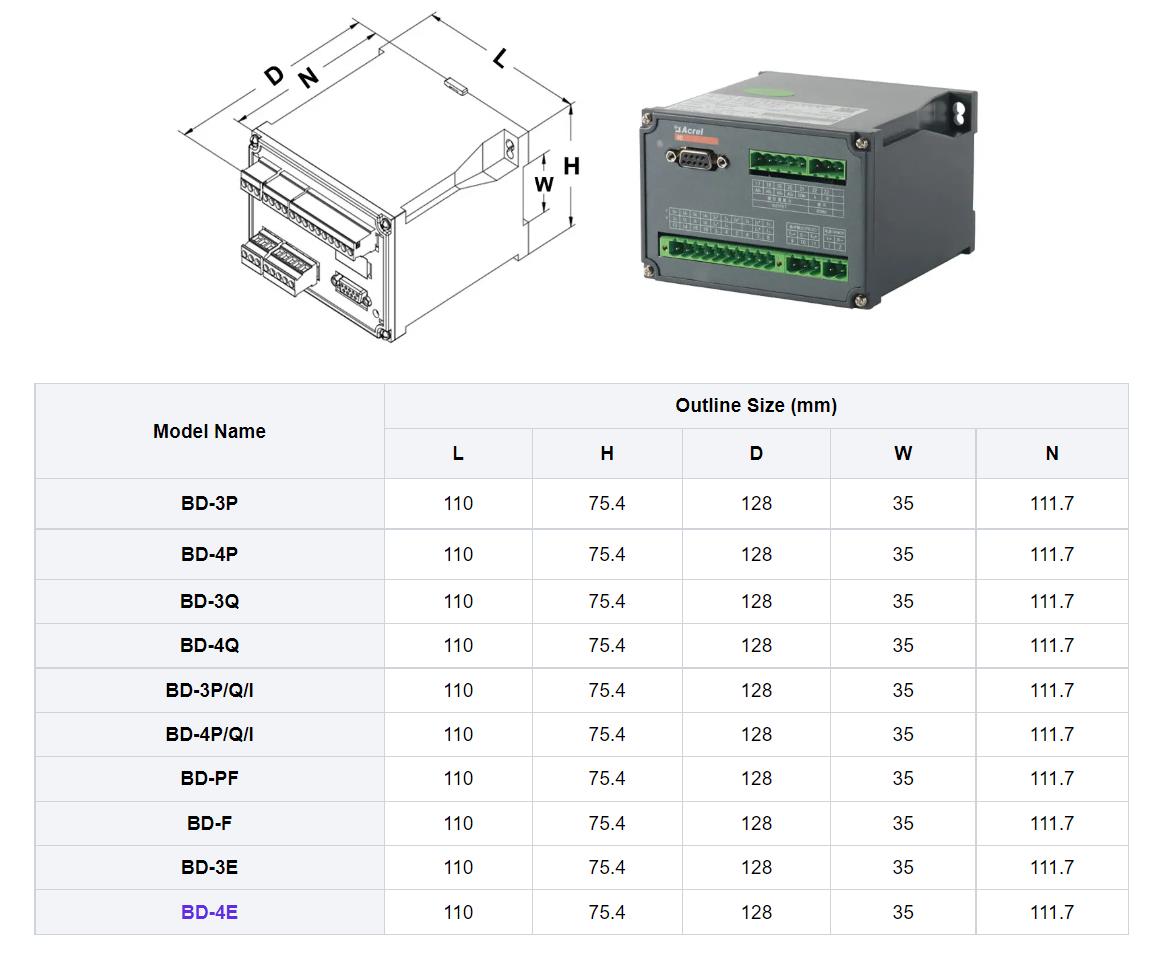

  • Size:

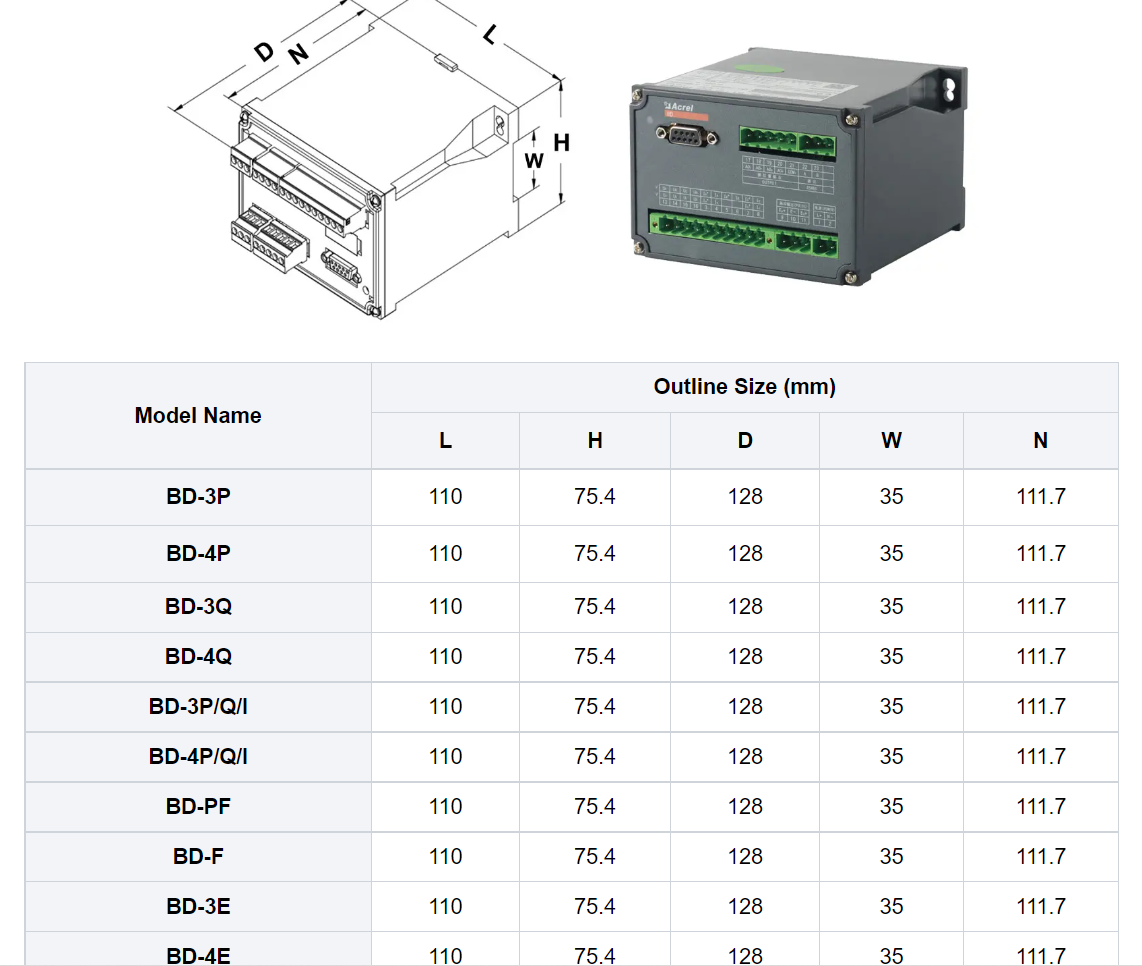

  • 110*111.7*75.4mm

  • Customized:

  • NO

  • Control Mode:

  • 4-20mA or 0-5V

  • Rated Power:

  • 45-65Hz

  • Nominal Voltage:

  • AC 100V, 220V, 380V

  • power phase number:

  • AC 85-265V or DC 100-350V

  • current input:

  • AC 1A, 5A

  • voltage input:

  • AC 100V, 220V, 380V

  • output:

  • 4-20mA, 0-5V

  • output channels:

  • 4 analog

  • installation:

  • Din rail 35mm

  • working temperature:

  • -10~55℃

Packaging & delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 28X25X20 cm

  • Single gross weight:

  • 3.000 kg

  • Package Type:

  • carton
  • Picture Example:

  • package-img

  • Lead time:

  • Quantity(pieces)1 - 30>30
    Lead time (days)15To be negotiated

Product Description

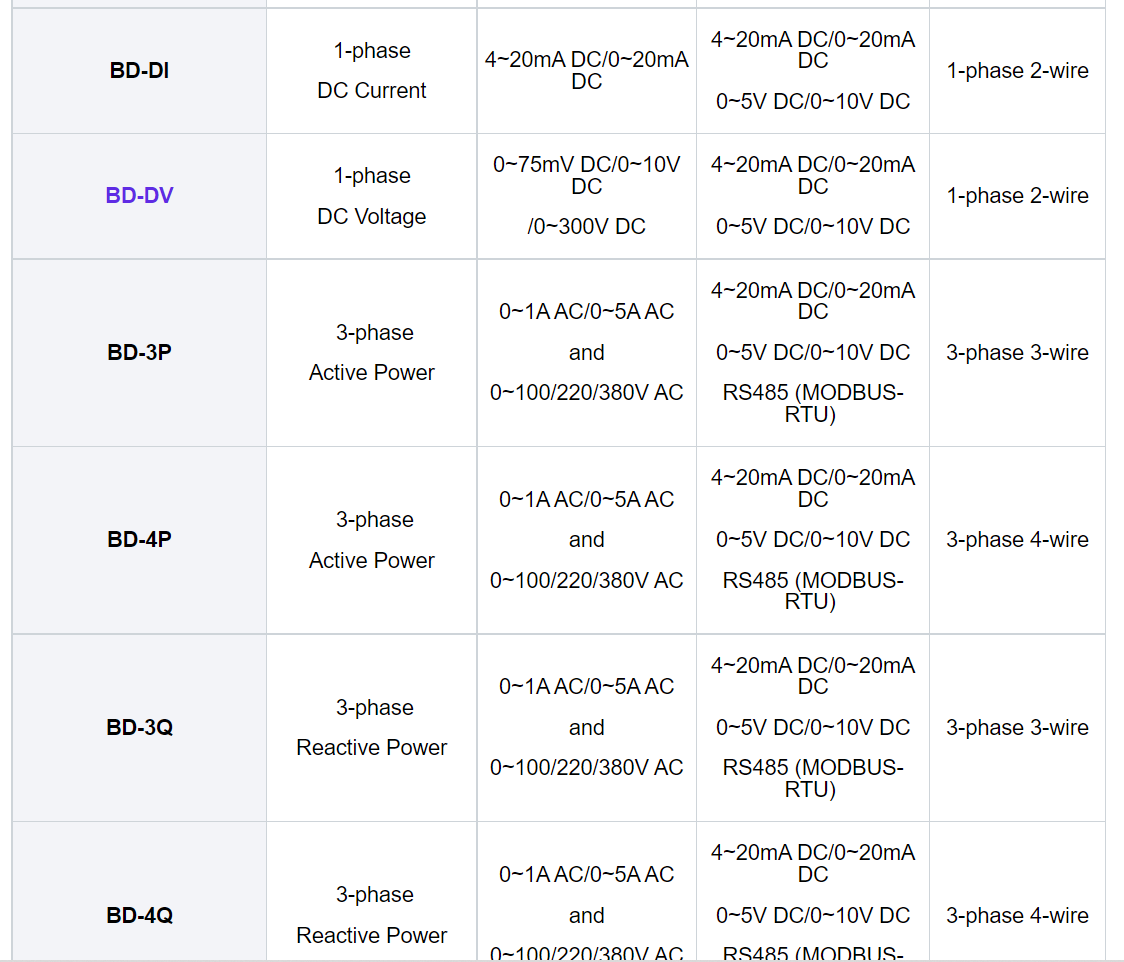

Specification

BD-4E/4M

3phase 4wire  4 analog output

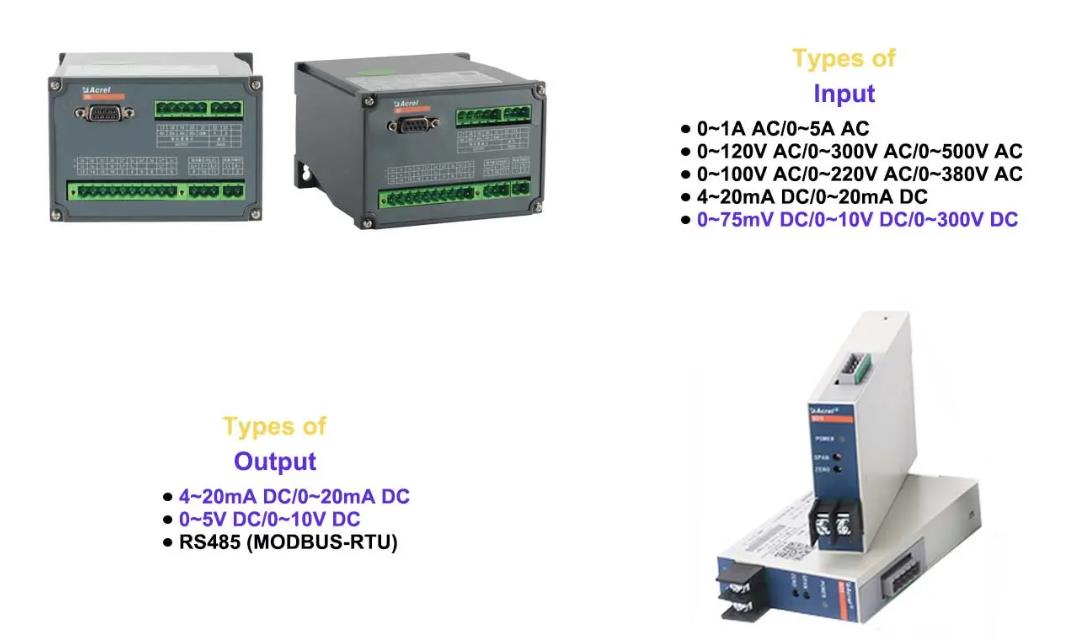

Input:

AC 1A, 5A;  AC 100V, 220V, 380V

Output:

DC 4~20mA、0~20mA、0~5V、0~10V

Power Supply

AC85V~265V/DC100V~350V or DC24V

Applicaiton

Paired with PLC for Industrial Automation

Accuracy

Class 0.5

Frequency

45Hz~65Hz

Installation

35mm DIN Rail/Screw fixed
